Compressed binary file internals

This article describes the structure of the zephyr.signed.bin file when image compression is enabled. You do not need to know these details to use the image compression subsystem, but they can be beneficial if you want to use them for verification or custom integration purposes.

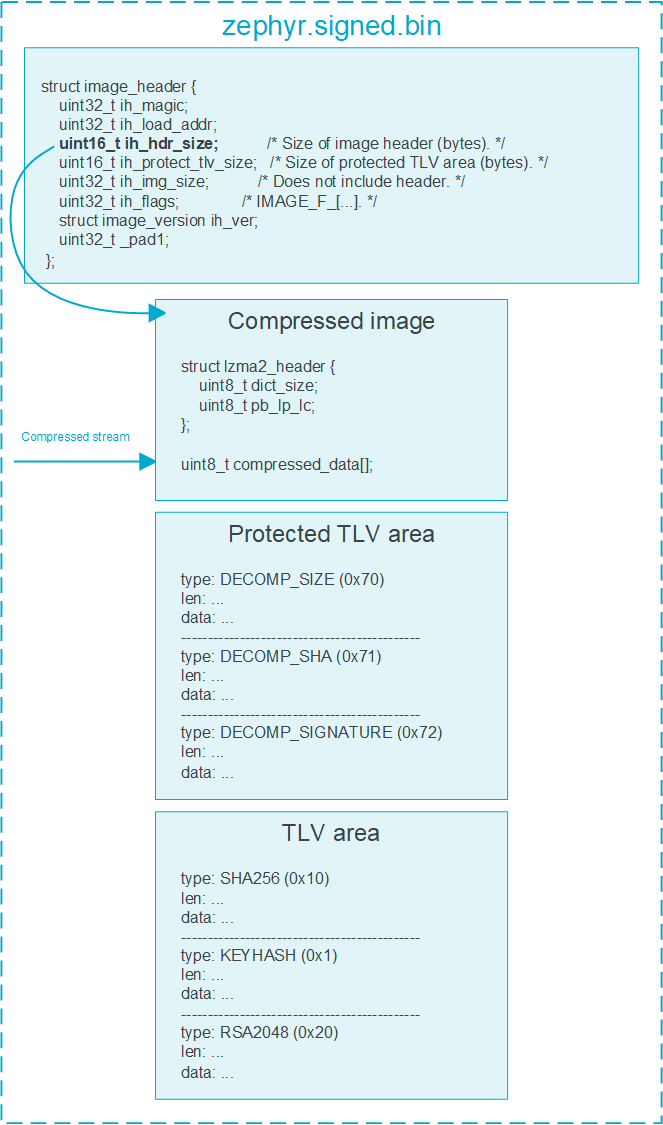

For an example, see the following structure of the file:

LZMA header

LZMA Header 

The Lempel-Ziv-Markov chain Algorithm (LZMA) header is crucial for files compressed using the LZMA method. It contains metadata essential for decompression. The lzma2_header encodes compression parameters using two bytes.

Calculating compression parameters 

Compression parameters can be calculated, retrieved, or changed depending on your needs. For details, see the following sections.

Default values 

Compression parameters have the following default values:

dict_size: 131072
pb: 2
lc: 3
lp: 1

Adjusting dictionary size 

You can calculate the dict_size using the following method:

unsigned int i = 0;

for (i = 0; i < 40; i++) {
    if (raw_dict_size <= (((uint32_t)2 | ((i) & 1)) << ((i) / 2 + 11))) {
        break;
    }
}
dict_size = (uint8_t)i;

With this method, dict_size can have one of the following values:

Hex Value	Size
0x00	4096
0x01	6144
0x02	8192
0x03	12288
0x04	16384
0x05	24576
0x06	32768
0x07	49152
0x08	65536
0x09	98304
0x0a	131072
0x0b	196608
0x0c	262144
0x0d	393216
0x0e	524288
0x0f	786432
0x10	1048576
0x11	1572864
0x12	2097152
0x13	3145728
0x14	4194304
0x15	6291456
0x16	8388608
0x17	12582912
0x18	16777216
0x19	25165824
0x1a	33554432
0x1b	50331648
0x1c	67108864
0x1d	100663296
0x1e	134217728
0x1f	201326592
0x20	268435456
0x21	402653184
0x22	536870912
0x23	805306368
0x24	1073741824
0x25	1610612736
0x26	2147483648
0x27	3221225472

Calculating literal context, literal pos, and pos bits 

The second byte of the lzma2_header carries the following parameters:

lc, which specifies a number of literal context bits
lp, which specifies a number of literal pos bits
pb, which specifies a number of pos bits

These parameters are encoded with the following formula:
```
pb_lp_lc = (uint8_t)((pb * 5 + lp) * 9 + lc);
```
To decode these values from the combined pb_lp_lc byte, run the following code:
```
lc = pb_lp_lc % 9;
pb_lp_lc /= 9;
pb = pb_lp_lc / 5;
lp = pb_lp_lc % 5;
```

Extracting LZMA stream from image 

To extract and decompress the LZMA stream from the image, follow these steps:

Determine the offset of the compressed stream by adding the lzma2_header size and the value stored under image_header.ih_hdr_size. For the size of the compressed stream, see image_header.ih_img_size.
If the compressed stream is isolated and stored in a file named raw.lzma, you can perform decompression using the following commands:

Without an ARM thumb filter:

unlzma --lzma2 --format=raw --suffix=.lzma raw.lzma

With an ARM thumb filter:

unlzma --armthumb --lzma2 --format=raw --suffix=.lzma raw.lzma

Once the command is executed you will see a newly created file named raw, which is identical to the image before compression.

TLVs 

The following Type-Length-Values (TLVs) are used in the context of decompressed images:

DECOMP_SIZE (0x70): Specifies the size of the decompressed image.
DECOMP_SHA (0x71): Contains the hash of the decompressed image.
DECOMP_SIGNATURE (0x72): Holds the signature of either the hash or the entire image.

These TLVs are placed in the protected TLV section, ensuring they are included in the hashing and signature calculations during the verification process. The process for choosing the type of cryptographic signature and hash algorithm used for securing the image is the same, regardless of whether the image has undergone compression.

Sample 

For practical implementation, you can find a simple stand-alone verification program under the following path bootloader/mcuboot/samples/compression_test/independent_cmp.c

This program demonstrates how to independently verify the integrity and authenticity of a decompressed image using the specified TLVs.
