How to add or remove boot header for XIP targets#

The MCUXpresso SDK for i.MX RT1010 provides flexspi_nor_debug and flexspi_nor_release targets for each example and/or demo which supports XIP (eXecute-In-Place). These two targets add XIP_BOOT_HEADER to the image by default. Because of this, ROM can boot and run this image directly on external flash.

Macros for the boot leader:

The following two macros are added in flexspi_nor targets to support XIP, as described in how_to_add_or_remove_boot_header_for_xip_targets.md#TABLE_SUPPORTINGXIP.

^

|XIP_EXTERNAL_FLASH|1: Exclude the code which will change the clock of flexspi.| |0: Make no changes.| |XIP_BOOT_HEADER_ENABLE|1: Add FLEXSPI configuration block, image vector table, and boot data to the image by default.| |0: Add nothing to the image by default.|
how_to_add_or_remove_boot_header_for_xip_targets.md#TABLE_EFFECTSONBUILTIMAGE shows the different effect on the built image with a different combination of these macros:

^

|XIP_EXTERNAL_FLASH=1|XIP_BOOT_HEADER_ENABLE=1|Can be programed to external flash by IDE and can run after POR reset if external flash is the boot source.| |XIP_BOOT_HEADER_ENABLE=0|Can NOT run after POR reset if it is programed by IDE even if external flash is the boot source.| |XIP_EXTERNAL_FLASH=0|This image can NOT do XIP because when this macro is set to 1, it will exclude the code which will change the clock of flexspi.|

Where to change the macros for each toolchain in MCUXpresso SDK?

Take hello_world as an example:

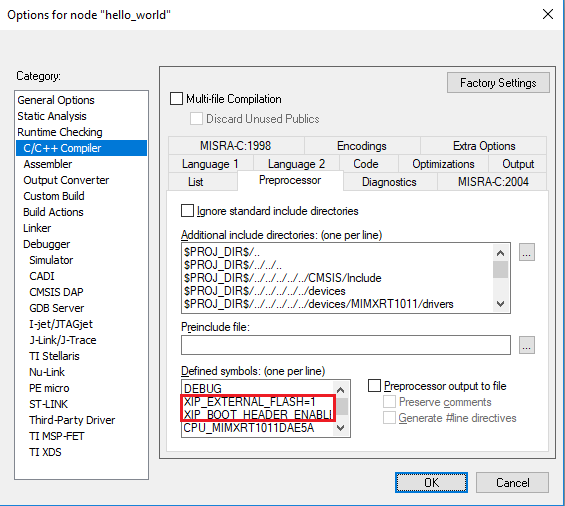

IAR

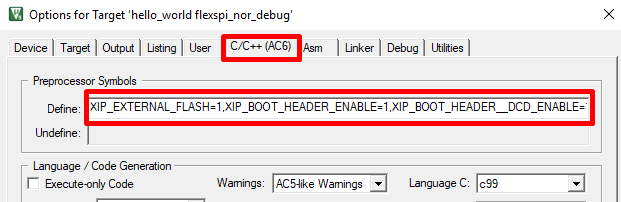

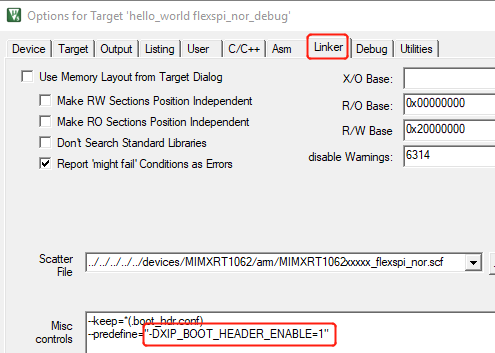

MDK
ARMGCC

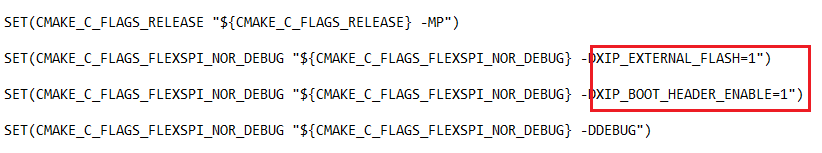

Change the configuration in CMakeLists.txt.

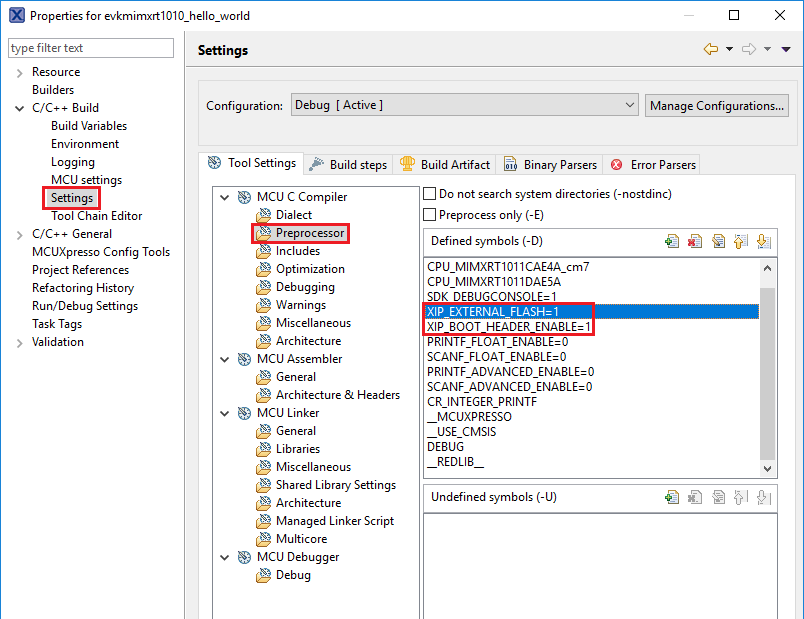

MCUX
