Hardware Rework Guide for MIMXRT595-EVK and AW-CM358MA

This section is a brief hardware rework guidance of the Ethermind Bluetooth stack on the NXP i.MX MIMXRT595-EVK board and AW-CM358MA. The AW-CM358MA user guide is available here. The hardware rework has one part:

• Debug console serial rework

Hardware rework

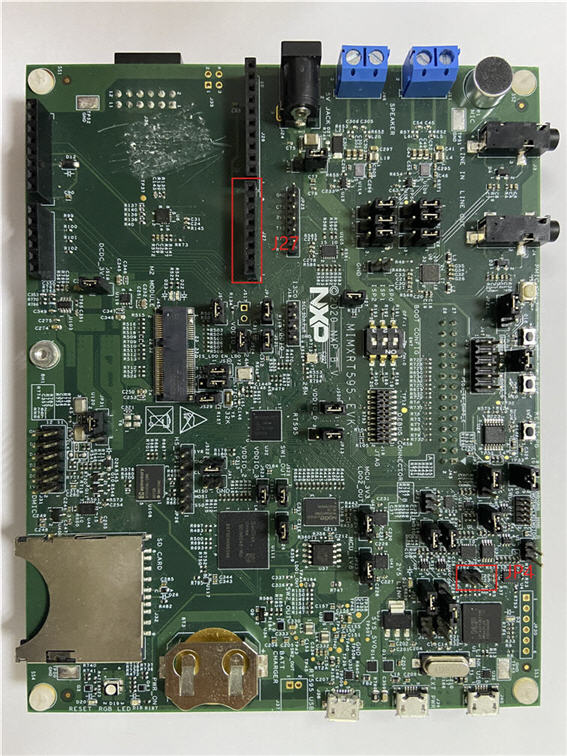

Debug console serial rework:

• Connect J39 with external power.

• JP4 1-2

• J27 1 - TX of USB to serial converter

• J27 2 - RX of USB to serial converter
