The mekmimx8qm.h file defines GPIO pin mappings and on-board sensors information for mekmimx8qm board. More...

#include "pin_mux.h"
#include "RTE_Device.h"
#include "gpio_driver.h"
#include "main/imx8qm_pads.h"
#include "svc/pad/pad_api.h"

Include dependency graph for mekmimx8qm.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	I2C_BB_SCL_PIN SC_P_HDMI_TX0_TS_SCL

#define	I2C_BB_SDA_PIN SC_P_HDMI_TX0_TS_SDA

#define	I2C_BB_DRIVER Driver_I2C2

#define	I2C_BB_DEVICE_INDEX I2C2_INDEX

#define	I2C_BB_SIGNAL_EVENT I2C2_SignalEvent_t

#define	HOST_S_DRIVER Driver_USART0

#define	HOST_S_SIGNAL_EVENT HOST_SignalEvent_t

#define	FXOS8700_BB_I2C_ADDR 0x1E

#define	FXAS21002_BB_I2C_ADDR 0x20

#define	MPL3115_BB_I2C_ADDR 0x60

#define	ASK_USER_TO_RESUME(x)

#define	I2C2 LPI2C2

#define	I2C_Type LPI2C_Type

#define	I2C_BASE_PTRS LPI2C_BASE_PTRS

#define	SPI1 LPSPI1

#define	SPI_Type LPSPI_Type

#define	SPI_BASE_PTRS LPSPI_BASE_PTRS

#define	FXAS21002_I2C_ADDR FXAS21002_BB_I2C_ADDR

#define	FXOS8700_I2C_ADDR FXOS8700_BB_I2C_ADDR

#define	MPL3115_I2C_ADDR MPL3115_BB_I2C_ADDR

#define	SMC NULL

Functions
status_t	SMC_SetPowerModeWait (void *)
	Configures the system to WAIT power mode. API name used from Kinetis family to maintain compatibility. More...

status_t	SMC_SetPowerModeVlpr (void *)
	Configures the system to VLPR power mode. API name used from Kinetis family to maintain compatibility. More...

Detailed Description

The mekmimx8qm.h file defines GPIO pin mappings and on-board sensors information for mekmimx8qm board.

Definition in file mekmimx8qm.h.

Macro Definition Documentation

◆ ASK_USER_TO_RESUME

#define ASK_USER_TO_RESUME ( x )

Value:

static volatile bool askResume = true;                                             \
    static uint16_t samplesToProcess = x - 1;                                          \
    if (askResume && !samplesToProcess--)                                              \
    {                                                                                  \
        PRINTF("\r\n Specified samples processed, press any key to continue... \r\n"); \
        GETCHAR();                                                                     \
        askResume = false;                                                             \
    }

Definition at line 49 of file mekmimx8qm.h.

◆ FXAS21002_BB_I2C_ADDR

#define FXAS21002_BB_I2C_ADDR 0x20

Definition at line 39 of file mekmimx8qm.h.

◆ FXAS21002_I2C_ADDR

#define FXAS21002_I2C_ADDR FXAS21002_BB_I2C_ADDR

Definition at line 68 of file mekmimx8qm.h.

◆ FXOS8700_BB_I2C_ADDR

#define FXOS8700_BB_I2C_ADDR 0x1E

Definition at line 34 of file mekmimx8qm.h.

◆ FXOS8700_I2C_ADDR

#define FXOS8700_I2C_ADDR FXOS8700_BB_I2C_ADDR

Definition at line 69 of file mekmimx8qm.h.

◆ HOST_S_DRIVER

#define HOST_S_DRIVER Driver_USART0

Definition at line 30 of file mekmimx8qm.h.

◆ HOST_S_SIGNAL_EVENT

#define HOST_S_SIGNAL_EVENT HOST_SignalEvent_t

Definition at line 31 of file mekmimx8qm.h.

◆ I2C2

#define I2C2 LPI2C2

Definition at line 60 of file mekmimx8qm.h.

◆ I2C_BASE_PTRS

#define I2C_BASE_PTRS LPI2C_BASE_PTRS

Definition at line 62 of file mekmimx8qm.h.

◆ I2C_BB_DEVICE_INDEX

#define I2C_BB_DEVICE_INDEX I2C2_INDEX

Definition at line 26 of file mekmimx8qm.h.

◆ I2C_BB_DRIVER

#define I2C_BB_DRIVER Driver_I2C2

Definition at line 25 of file mekmimx8qm.h.

◆ I2C_BB_SCL_PIN

#define I2C_BB_SCL_PIN SC_P_HDMI_TX0_TS_SCL

Definition at line 23 of file mekmimx8qm.h.

◆ I2C_BB_SDA_PIN

#define I2C_BB_SDA_PIN SC_P_HDMI_TX0_TS_SDA

Definition at line 24 of file mekmimx8qm.h.

◆ I2C_BB_SIGNAL_EVENT

#define I2C_BB_SIGNAL_EVENT I2C2_SignalEvent_t

Definition at line 27 of file mekmimx8qm.h.

◆ I2C_Type

#define I2C_Type LPI2C_Type

Definition at line 61 of file mekmimx8qm.h.

◆ MPL3115_BB_I2C_ADDR

#define MPL3115_BB_I2C_ADDR 0x60

Definition at line 44 of file mekmimx8qm.h.

◆ MPL3115_I2C_ADDR

#define MPL3115_I2C_ADDR MPL3115_BB_I2C_ADDR

Definition at line 70 of file mekmimx8qm.h.

◆ SMC

#define SMC NULL

Definition at line 73 of file mekmimx8qm.h.

◆ SPI1

#define SPI1 LPSPI1

Definition at line 63 of file mekmimx8qm.h.

◆ SPI_BASE_PTRS

#define SPI_BASE_PTRS LPSPI_BASE_PTRS

Definition at line 65 of file mekmimx8qm.h.

◆ SPI_Type

#define SPI_Type LPSPI_Type

Definition at line 64 of file mekmimx8qm.h.

Function Documentation

◆ SMC_SetPowerModeVlpr()

status_t SMC_SetPowerModeVlpr ( void * arg )

Configures the system to VLPR power mode. API name used from Kinetis family to maintain compatibility.

Parameters

Power peripheral base address (dummy).

Returns: Configuration error code.

Definition at line 169 of file lpc54114.c.

Referenced by BOARD_BootClockVLPR(), fxlc95000_enSensor(), and main().

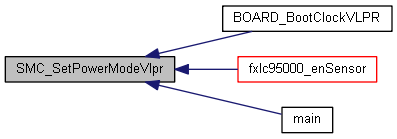

Here is the caller graph for this function:

◆ SMC_SetPowerModeWait()

status_t SMC_SetPowerModeWait ( void * arg )

Configures the system to WAIT power mode. API name used from Kinetis family to maintain compatibility.
