lpc55s69.h File Reference

The lpc55s69.h file defines GPIO pin mappings for LPCXpresso55S69 board. More...

#include "pin_mux.h"
#include "fsl_power.h"
#include "RTE_Device.h"
#include "gpio_driver.h"
#include "clock_config.h"

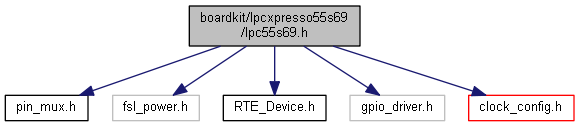

Include dependency graph for lpc55s69.h:

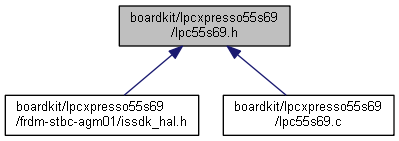

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PORT0   0
#define	PORT1   1
#define	I2C_S1_SCL_PIN   D15
#define	I2C_S1_SDA_PIN   D14
#define	I2C_S1_DRIVER   Driver_I2C4
#define	I2C_S1_DEVICE_INDEX   I2C4_INDEX
#define	I2C_S1_SIGNAL_EVENT   I2C4_SignalEvent_t
#define	SPI_S_DRIVER   Driver_SPI7
#define	SPI_S_BAUDRATE   500000U
	Transfer baudrate - 500k. More...
#define	SPI_S_DEVICE_INDEX   SPI7_INDEX
#define	SPI_S_SIGNAL_EVENT   SPI7_SignalEvent_t
#define	HOST_S_DRIVER   Driver_USART0
#define	HOST_S_SIGNAL_EVENT   HOST_SignalEvent_t
#define	HOST_B_DRIVER   Driver_USART1
#define	HOST_B_SIGNAL_EVENT   HOST_SignalEvent_t
#define	ASK_USER_TO_RESUME(x)
#define	SMC   NULL

Functions
status_t	SMC_SetPowerModeWait (void *)
	Configures the system to WAIT power mode. API name used from Kinetis family to maintain compatibility. More...
status_t	SMC_SetPowerModeVlpr (void *)
	Configures the system to VLPR power mode. API name used from Kinetis family to maintain compatibility. More...
void	BOARD_BootClockRUN (void)
	This function executes configuration of clocks. More...

Variables
gpioHandleKSDK_t	D14
gpioHandleKSDK_t	D15
gpioHandleKSDK_t	D11
gpioHandleKSDK_t	D12
gpioHandleKSDK_t	D13
gpioHandleKSDK_t	D0
gpioHandleKSDK_t	D1
gpioHandleKSDK_t	RED_LED
gpioHandleKSDK_t	GREEN_LED
gpioHandleKSDK_t	BLUE_LED

Detailed Description

The lpc55s69.h file defines GPIO pin mappings for LPCXpresso55S69 board.

Definition in file lpc55s69.h.

Macro Definition Documentation

ASK_USER_TO_RESUME

#define ASK_USER_TO_RESUME

(

x

)

Value:

static bool askResume = true;                                                      \
    static uint16_t samplesToProcess = x - 1;                                          \
    if (askResume && !samplesToProcess--)                                              \
    {                                                                                  \
        PRINTF("\r\n Specified samples processed, press any key to continue... \r\n"); \
        GETCHAR();                                                                     \
        askResume = false;                                                             \
    }

Definition at line 62 of file lpc55s69.h.

HOST_B_DRIVER

#define HOST_B_DRIVER   Driver_USART1

Definition at line 58 of file lpc55s69.h.

HOST_B_SIGNAL_EVENT

#define HOST_B_SIGNAL_EVENT   HOST_SignalEvent_t

Definition at line 59 of file lpc55s69.h.

HOST_S_DRIVER

#define HOST_S_DRIVER   Driver_USART0

Definition at line 56 of file lpc55s69.h.

HOST_S_SIGNAL_EVENT

#define HOST_S_SIGNAL_EVENT   HOST_SignalEvent_t

Definition at line 57 of file lpc55s69.h.

I2C_S1_DEVICE_INDEX

#define I2C_S1_DEVICE_INDEX   I2C4_INDEX

Definition at line 46 of file lpc55s69.h.

I2C_S1_DRIVER

#define I2C_S1_DRIVER   Driver_I2C4

Definition at line 45 of file lpc55s69.h.

I2C_S1_SCL_PIN

#define I2C_S1_SCL_PIN   D15

Definition at line 43 of file lpc55s69.h.

I2C_S1_SDA_PIN

#define I2C_S1_SDA_PIN   D14

Definition at line 44 of file lpc55s69.h.

I2C_S1_SIGNAL_EVENT

#define I2C_S1_SIGNAL_EVENT   I2C4_SignalEvent_t

Definition at line 47 of file lpc55s69.h.

PORT0

#define PORT0   0

Definition at line 21 of file lpc55s69.h.

PORT1

#define PORT1   1

Definition at line 22 of file lpc55s69.h.

SMC

#define SMC   NULL

Definition at line 73 of file lpc55s69.h.

SPI_S_BAUDRATE

#define SPI_S_BAUDRATE   500000U

Transfer baudrate - 500k.

Definition at line 51 of file lpc55s69.h.

SPI_S_DEVICE_INDEX

#define SPI_S_DEVICE_INDEX   SPI7_INDEX

Definition at line 52 of file lpc55s69.h.

SPI_S_DRIVER

#define SPI_S_DRIVER   Driver_SPI7

Definition at line 50 of file lpc55s69.h.

SPI_S_SIGNAL_EVENT

#define SPI_S_SIGNAL_EVENT   SPI7_SignalEvent_t

Definition at line 53 of file lpc55s69.h.

Function Documentation

BOARD_BootClockRUN()

void BOARD_BootClockRUN

(

void

)

This function executes configuration of clocks.

This function executes configuration of clocks.

Parameters

void

Returns

void

Definition at line 168 of file clock_config.c.

SMC_SetPowerModeVlpr()

status_t SMC_SetPowerModeVlpr

(

void *

arg

)

Configures the system to VLPR power mode. API name used from Kinetis family to maintain compatibility.

Parameters

Power

peripheral base address (dummy).

Returns

Configuration error code.

Definition at line 169 of file lpc54114.c.

SMC_SetPowerModeWait()

status_t SMC_SetPowerModeWait

(

void *

arg

)

Configures the system to WAIT power mode. API name used from Kinetis family to maintain compatibility.

Parameters

Power

peripheral base address (dummy).

Returns

Configuration error code.

Definition at line 155 of file lpc54114.c.

Variable Documentation

BLUE_LED

gpioHandleKSDK_t BLUE_LED

Definition at line 195 of file frdm_k64f.c.

D0

gpioHandleKSDK_t D0

Definition at line 72 of file frdm_k64f.c.

D1

gpioHandleKSDK_t D1

Definition at line 79 of file frdm_k64f.c.

D11

gpioHandleKSDK_t D11

Definition at line 56 of file frdm_k64f.c.

D12

gpioHandleKSDK_t D12

Definition at line 63 of file frdm_k64f.c.

D13

gpioHandleKSDK_t D13

Definition at line 49 of file frdm_k64f.c.

D14

gpioHandleKSDK_t D14

Definition at line 24 of file frdm_k64f.c.

D15

gpioHandleKSDK_t D15

Definition at line 17 of file frdm_k64f.c.

GREEN_LED

gpioHandleKSDK_t GREEN_LED

Definition at line 188 of file frdm_k64f.c.

RED_LED

gpioHandleKSDK_t RED_LED

Definition at line 181 of file frdm_k64f.c.
