Migrate examples from RT1060EVKC to RT1064

Migrate examples from RT1060EVKC to RT1064#

This topic describes the Common steps and the steps to migrate with the IAR, Arm GCC, and MDK toolchains.

Common steps#

  1. Download SDK_26.09.00_EVKC-MIMXRT1060 and SDK_26.09.00_EVK-MIMXRT1064.

  2. Copy the following folders from the RT1060EVKC package to the RT1064 package: <install_dir>/middleware/edgefast_open/.

  3. Create a new folder named edgefast_open_examples/ under <rt1064_install_dir>/boards/evkmimxrt1064/.

  4. Copy the entire folder from <rt1060evkc_install_dir>/boards/evkcmimxrt1060/edgefast_open_examples/peripheral_ht/ to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/.

  5. Copy clock_config.[c/h] and board.c from <rt1064_install_dir>/boards/evkmimxrt1064/demo_apps/hello_world/ to <rt1064_installed>/boards/evkmimxrt1064/edgefast_open_examples/peripheral_ht/ to replace the previous files.

Parent topic:Migrate examples from RT1060EVKC to RT1064

IAR#

  1. Navigate to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/peripheral_ht/iar/.

  2. Make the following changes in the listed order.

    File name

    Previous item

    New item

    peripheral_ht.ewp

    1062

    1064

    mflash/evkcmimxrt1060

    mflash/mimxrt1064

    evkcmimxrt1060

    evkmimxrt1064

    6B

    6A

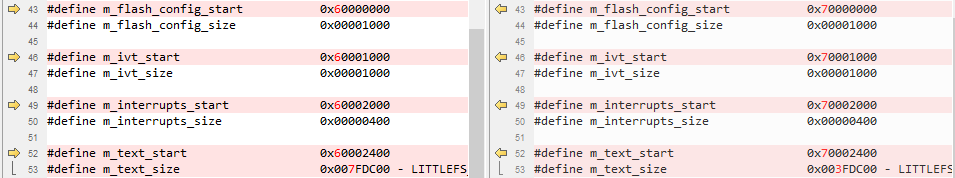

  3. Rename MIMXRT1062xxxxx_flexspi_nor.icf as MIMXRT1064xxxxx_flexspi_nor.icf and make the following changes.

Parent topic:Migrate examples from RT1060EVKC to RT1064

Arm GCC#

  1. Navigate to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/peripheral_ht/armgcc/.

  2. Copy folder from <rt1060evkc_install_dir>/boards/evkcmimxrt1060/edgefast_open_examples/template/ to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/ and rename the files.

    |Path|Previous name|New name| |<rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/|middleware_edgefast_open_mcux_linker_template_evkcmimxrt1060.cmake|middleware_edgefast_open_mcux_linker_template_evkmimxrt1064.cmake| |middleware_edgefast_open_sdio_template_evkcmimxrt1060.cmake|middleware_edgefast_open_sdio_template_evkmimxrt1064.cmake|

  3. search “edgefast_open” in <rt1060evkc_install_dir>/devices/MIMXRT1062/all_lib_device.cmake, and add them in <rt1064_install_dir>/devices/MIMXRT1064/all_lib_device.cmake,such as:

    #set.middleware.edgefast_open
#  # description: EdgeFast Open component
#  set(CONFIG_USE_middleware_edgefast_open true)

#  # description: EdgeFast Open BT component
#  set(CONFIG_USE_middleware_edgefast_open_bt true)
...
#  # description: EdgeFast Open Controller Lwip Config component
#  set(CONFIG_USE_middleware_edgefast_open_controller_lwip_config true)

#  # description: EdgeFast Open Controller Wifi Config component
#  set(CONFIG_USE_middleware_edgefast_open_controller_wifi_config true)

${CMAKE_CURRENT_LIST_DIR}/../../middleware/edgefast_open

include_if_use(middleware_edgefast_open)
include_if_use(middleware_edgefast_open_asrc_sw)
include_if_use(middleware_edgefast_open_bt)
include_if_use(middleware_edgefast_open_bt_a2dp)
...
include_if_use(middleware_edgefast_open_port_shell)
include_if_use(middleware_edgefast_open_suppressed_warnings)
include_if_use(middleware_edgefast_open_utf8)
include_if_use(middleware_edgefast_open_uuid)

  4. Make the following changes in the listed order.

    File name

    Previous item

    New item

    config.cmake

    MIMXRT1062xxxxB

    MIMXRT1064xxxxA

    mflash_evkcmimxrt1060

    mflash_rt1064

    1062

    1064

    evkcmimxrt1060

    evkmimxrt1064

    flags.cmake

    1062

    1064

    6B

    6A

    CMakeLists.txt

    1062

    1064

    <rt1064_install_dir>/middleware/edgefast_open/middleware_edgefast_open_template.cmake

    evkcmimxrt1060

    evkmimxrt1064

    <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/middleware_edgefast_open_mcux_linker_template_evkmimxrt1064.cmake

    1062

    1064

    <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/middleware_edgefast_open_sdio_template_evkmimxrt1064.cmake

    1062

    1064

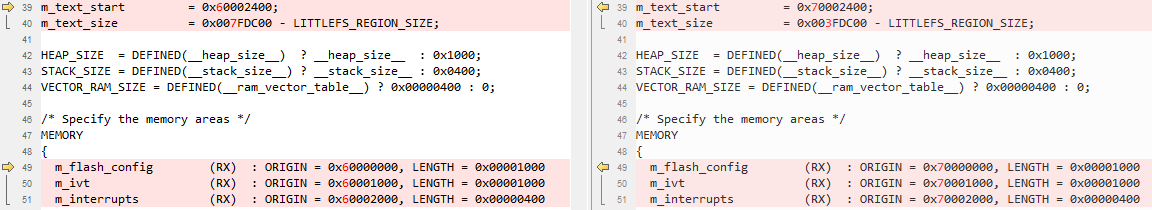

  5. Rename MIMXRT1062xxxxx_flexspi_nor.ld as MIMXRT1064xxxxx_flexspi_nor.ld and make the following changes.

Parent topic:Migrate examples from RT1060EVKC to RT1064

MDK#

  1. Navigate to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/peripheral_ht/mdk/.

  2. Make the following changes in the listed order.

    File name

    Previous item

    New item

    peripheral_ht.uvprojx

    1062

    1064

    mflash/evkcmimxrt1060

    mflash/mimxrt1064

    evkcmimxrt1060

    evkmimxrt1064

    6B

    6A

  3. Copy evkmimxrt1064_flexspi_nor.ini from <rt1064_install_dir>/boards/evkmimxrt1064/demo_apps/hello_world/mdk/ to <rt1064_install_dir>/boards/evkmimxrt1064/edgefast_open_examples/peripheral_ht/mdk/.

  4. Rename MIMXRT1062xxxxx_flexspi_nor as MIMXRT1064xxxxx_flexspi_nor and make the following changes.

Parent topic:Migrate examples from RT1060EVKC to RT1064
