eIQ MPP Hardware Abstraction Layer API

eIQ MPP Hardware Abstraction Layer API#

MPP-HAL VERSION 4.4

Chapter 1#

This is the documentation for the Hardware Abstraction Layer (HAL) API.

1.1 HAL overview#

The hardware abstraction layer abstracts hardware and software components so that the vision pipeline can leverage hardware-accelerated components whenever they are available.

1.1.1 MPP HAL description#

The HAL is organized around the following conventions:

A common header file hal.h includes all hardware top-level functions.
All hardware top-level functions use the prefix hal_ .
For each platform, all hal_ functions defined in hal.h must be implemented (at least as empty stubs).

Here is an overview:

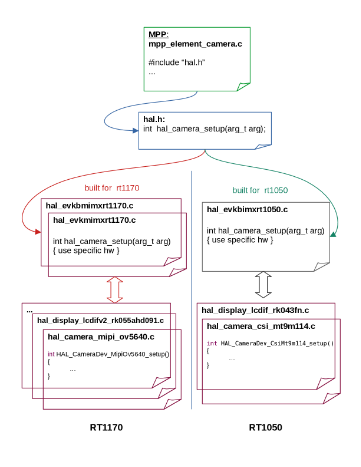

Figure 1.1 HAL overview

1.1.2 MPP HAL components#

Source elements HAL

Camera (MIPI CSI, FlexIO, USB/UVC)
Static image (from memory buffer)
File source (from SD card storage)
Multicore source (receive frames from another core over RPMsg)

Processing elements HAL

Graphics driver (image conversion, scaling, cropping, rotation, flip)
Image decoder (JPEG SW/HW, H.264 SW)
Vision algorithms (ML inference: TFLite, ExecuTorch)
Labeled rectangle and landmarks drawing

Sink elements HAL

Display panel
File sink (write to SD card)
RTSP/RTP network streaming sink
Null sink
Multicore sink (send frames to another core over RPMsg)

Multicore HAL The hal_mc component provides inter-core communication for multicore pipelines on SoCs such as i.MX RT1170 (CM7 + CM4). It implements the mc_dev_operator_t interface and handles:

RPMsg endpoint creation and teardown
Shared-memory buffer negotiation between cores
Synchronization locks for exclusive buffer access
Enqueue/dequeue of frame buffers to/from the remote core
MCMGR event signalling (when HAL_ENABLE_MULTICORE=1 ) The multicore HAL is enabled by setting HAL_ENABLE_MULTICORE=1 in mpp_config.h.

1.1.3 Supported devices#

At present, the MPP HAL supports the following devices:

Cameras:
- OV5640 (MIPI CSI)
- MT9M114 (parallel, deprecated)
- OV7670 (FlexIO)
- USB UVC cameras (e.g. Logitech C920 PRO HD WEBCAM)
Displays:
- LVGL (software framebuffer)
- RK055AHD091 (MIPI DSI 720x1280)
- RK055MHD091 (MIPI DSI 720x1280)
- RK043FN02H-CT (parallel, deprecated)
- Mikroe TFT Proto 5” (SSD1963 controller, FlexIO/LCD DBI)
- NXP LCD-PAR-S035 (ST7796S controller, 8080 parallel)
- FBdev (Linux framebuffer)
- Zephyr display (via Zephyr display driver API)
Graphics:
- PXP (Pixel Pipeline, hardware accelerated)
- VGLite (GPU, hardware accelerated)
- CPU (software)
Image decoders:
- JPEG SW decoder
- JPEG HW decoder
- H.264 SW decoder
Storage:
- SD card (FatFS)
RTSP/RTP streaming:
- H.264 RTP streaming over UDP
Multicore communication:
- RPMsg + MCMGR (i.MX RT1170 CM7/CM4)

1.1.4 Supported boards#

Currently, the MPP HAL supports the following boards:

evkbmimxrt1170 is supported with the following devices:
- Cameras: OV5640.
- Displays: LVGL, RK055AHD091 and RK055MHD091.
- Graphics: PXP, CPU.
- Decoders: JPEG SW, JPEG HW.
frdmmcxn947 is supported with the following devices:
- Cameras: OV7670.
- Displays: Mikroe TFT Proto 5” and NXP LCD-PAR-S035.
- Graphics: CPU.
- Decoders: JPEG SW.
mimxrt700evk is supported with the following devices:
- Cameras: OV7670, USB UVC (Logitech C920 PRO HD WEBCAM).
- Displays: RK055AHD091 and RK055MHD091.
- Graphics: PXP, VGLite, CPU.
- Decoders: JPEG SW, JPEG HW.
- Storage: SD card.
- Streaming: RTSP/RTP H.264 (multicore: core0 + core1).
- Multicore: RPMsg + MCMGR (CM33 + CM33).
frdmimxrt700 is supported with the following devices:
- Cameras: OV7670, USB UVC.
- Displays: Raspberry Pi 7”.
- Graphics: VGLite, CPU.
- Decoders: JPEG SW, JPEG HW.
- Storage: SD card.
frdmimxrt1152 is supported with the following devices:
- Cameras: OV5640.
- Displays: RK055AHD091 and RK055MHD091.
- Graphics: PXP, CPU.
- Decoders: JPEG SW, JPEG HW.

How to port new boards/devices: The MPP HAL provides the flexibility for users to port new boards and devices (cameras, displays, etc.).

Supporting new boards: To support a new board, add a new file hal_{board_name}.c under the hal/ directory. The file must implement all hardware-specific setup functions declared in hal.h.

Supporting new devices: The HAL components that can support new devices are:

Cameras
Displays
Graphics processing

A new device can be supported by:

Providing the appropriate hal_{device_module} implementation.
Adding its name and setup entry point to the appropriate device list in the associated board file hal_{board_name}.c .

Enabling/Disabling HAL components and devices:

HAL components can be enabled or disabled from mpp_config.h using compilation flags of the form HAL_ENABLE_{COMPONENT_NAME} .
Individual HAL devices can also be enabled or disabled from mpp_config.h using flags of the form HAL_ENABLE_{DEVICE_NAME} .

Chapter 2#

Data Structures

struct camera_dev_static_config_t
struct camera_dev_private_capability_t
struct _camera_dev
struct virtual_usb_cam_config_msg_t
struct virtual_usb_cam_req_msg_t
struct virtual_usb_cam_rsp_msg_t
struct virtual_usb_cam_msg_t
struct static_image_static_config_t
struct _static_image
struct filesrc_config_t
struct _filesrc
struct filesink_config_t
struct _filesink
struct rtspsink_config_t
struct _rtspsink
struct rtspsrc_config_t
struct _rtspsrc
struct gfx_surface_t
struct gfx_rotate_config_t
struct _gfx_dev
struct hal_rect_t
struct vdec_h264_frame_info_t
struct _vdec_dev
struct _vdec_h264_dev
struct model_param_t
struct valgo_dev_private_capability_t
struct vision_frame_t
struct _vision_algo_dev
struct _display_dev_private_capability
struct _display_dev
struct hw_buf_desc_t
struct hal_img_decoder_setup_t
struct hal_graphics_setup_t
struct hal_display_setup_t
struct hal_camera_setup_t
struct checksum_data_t
struct mc_dev_operator_t
struct mc_dev_static_buf_config
struct mc_dev_static_config_t
struct _multicore_dev
struct venc_h264_frame_info_t
struct _venc_h264_dev

Macros

#define MAX_STREAM_REQUESTERS
#define TARGET_CAMERA0_WIDTH
#define TARGET_CAMERA0_HEIGHT
#define TARGET_CAMERA1_WIDTH
#define TARGET_CAMERA1_HEIGHT
#define TARGET_CAMERA0_RESOLUTION
#define TARGET_CAMERA1_RESOLUTION
#define TARGET_CAMERA_MAX_RESOLUTION
#define TARGET_CAMERA_FPS
#define CAMERA_DEV_BUFFER_ALIGN
#define CORE1_EPT_ADDRESS
#define MPP_EPT_ADDRESS
#define RTSP_EPT_ADDRESS
#define APP_EP_READY_EVENT_DATA
#define FILE_SOURCE_FILEPATH_MAX_LEN
#define FILE_SINK_FILEPATH_MAX_LEN
#define HAL_GFX_DEV_CPU_NAME
#define GUI_PRINTF_BUF_SIZE
#define HAL_VDEC_DEV_NAME
#define MAX_INPUT_PORTS
#define MAX_OUTPUT_PORTS
#define HAL_DEVICE_NAME_MAX_LENGTH
#define HAL_VENC_DEV_NAME

Typedefs

typedef int(* camera_dev_callback_t)(const camera_dev_t *dev, camera_event_t event, void *param, uint8_t fromISR)
typedef void * vision_algo_private_data_t
typedef int(* mpp_callback_t)(mpp_t mpp, mpp_evt_t evt, void *evt_data, void *user_data)
typedef int(* img_decoder_setup_func_t)(vdec_dev_t *)
typedef int(* graphic_setup_func_t)(gfx_dev_t *)
typedef int(* display_setup_func_t)(display_dev_t *)
typedef int(* camera_setup_func_t)(const char *, camera_dev_t *)

Enumerations

enum hal_camera_status_t {

kStatus_HAL_CameraSuccess,

kStatus_HAL_CameraBusy,

kStatus_HAL_CameraNoData,

kStatus_HAL_CameraNonBlocking,

kStatus_HAL_CameraError }
enum camera_event_t {

kCameraEvent_SendFrame,

kCameraEvent_CameraDeviceInit }
enum virtual_usb_cam_msg_type_e {

VIRT_USB_CAM_NOMSG,

VIRT_USB_CAM_CONFIG,

VIRT_USB_CAM_CONFIG_ACK,

VIRT_USB_CAM_CONFIG_ERR,

VIRT_USB_CAM_REQRGB,

VIRT_USB_CAM_REQIR,

VIRT_USB_CAM_REQRGBIR,

VIRT_USB_CAM_RSPRGB,

VIRT_USB_CAM_RSPIR,

VIRT_USB_CAM_RSPRGBIR,

VIRT_USB_CAM_ERROR }
enum virtual_usb_cam_user_id_e {

RTSP_USER_ID,

MPP_USER_ID }
enum virtual_usb_cam_col_format_e {

VIRT_USB_CAM_JPEG }
enum hal_image_status_t {

MPP_kStatus_HAL_ImageSuccess,

MPP_kStatus_HAL_ImageError }
enum hal_filesrc_status_t {

MPP_kStatus_HAL_FileSrcSuccess,

MPP_kStatus_HAL_FileSrcError,

MPP_kStatus_HAL_FileSrcEOF }
enum hal_filesink_status_t {

MPP_kStatus_HAL_FileSinkSuccess,

MPP_kStatus_HAL_FileSinkError }
enum gfx_rotate_target_t {

kGFXRotateTarget_None,

kGFXRotate_SRCSurface,

kGFXRotate_DSTSurface }
enum hal_vdec_status_t {

MPP_kStatus_HAL_VDecSuccess,

MPP_kStatus_HAL_VDecSkipped,

MPP_kStatus_HAL_VDecError }
enum hal_valgo_status_t {

kStatus_HAL_ValgoSuccess,

kStatus_HAL_ValgoMallocError,

kStatus_HAL_ValgoInitError,

kStatus_HAL_ValgoError,

kStatus_HAL_ValgoStop }
enum display_event_t {

kDisplayEvent_RequestFrame }
enum hal_display_status_t {

kStatus_HAL_DisplaySuccess,

kStatus_HAL_DisplayTxBusy,

kStatus_HAL_DisplayNonBlocking,

kStatus_HAL_DisplayError }
enum mpp_memory_policy_t {

HAL_MEM_ALLOC_NONE,

HAL_MEM_ALLOC_INPUT,

HAL_MEM_ALLOC_OUTPUT,

HAL_MEM_ALLOC_BOTH }
enum checksum_type_t {

CHECKSUM_TYPE_PISANO,

CHECKSUM_TYPE_CRC_ELCDIF }
enum hal_mc_status_t {

kStatus_HAL_MultiCoreSuccess,

kStatus_HAL_MultiCoreError,

kStatus_HAL_MultiCoreNoDataReq }
enum hal_mc_dev_type_t {

kHAL_MultiCoreDevTypeSink,

kHAL_MultiCoreDevTypeSource }
enum hal_venc_status_t {

MPP_kStatus_HAL_VEncSuccess,

MPP_kStatus_HAL_VEncError }

Functions

int search_h264_nalu (const uint8_t * data, int32_t len)
int HAL_GfxDev_CPU_Register (gfx_dev_t * dev)
int HAL_GfxDev_GPU_Register (gfx_dev_t * dev)
void HAL_JPEG_PrintValidationStats (void)
int HAL_JPEG_CPU_Register (vdec_dev_t * dev)
int HAL_JPEG_HW_Register (vdec_dev_t * dev)
hal_vdec_status_t HAL_VdecDev_H264_CPU_Register (vdec_h264_dev_t * dev)
int setup_static_image_elt (static_image_t * elt)
int setup_filesrc_elt (filesrc_t * elt)
int setup_rtspsrc_elt (rtspsrc_t * elt)
uint32_t calc_checksum (int size_b, void * pbuf)
hal_venc_status_t HAL_VencDev_H264_CPU_Register (venc_h264_dev_t * dev)

2.1 HAL Types#

This section provides the detailed documentation for the MPP HAL types.

2.1.1 Function Documentation#

search_h264_nalu#

int search_h264_nalu ( const uint8_t * data, int32_t len )

Search function for H.264 NALU boundaries.

This function searches for H.264 Network Abstraction Layer Unit (NALU) start codes in the provided data buffer. It looks for:

4-byte start code: 0x00 0x00 0x00 0x01
3-byte start code: 0x00 0x00 0x01

Parameters

in/out	name	description
in	data	Pointer to buffer containing H.264 bitstream data
in	len	Length of data in buffer (bytes)

Returns

Offset to next NALU start code, or -1 if not found

HAL_GfxDev_CPU_Register#

int HAL_GfxDev_CPU_Register ( gfx_dev_t * dev )

Parameters

in/out	name	description
in	dev	graphic device to register

Returns

error code (0: success, otherwise: failure)

HAL_GfxDev_GPU_Register#

int HAL_GfxDev_GPU_Register ( gfx_dev_t * dev )

Parameters

in/out	name	description
in	dev	graphic device to register

uint32_t calc_checksum ( int size_b, void * pbuf )

Compute a 32-bit checksum over a memory buffer.

Parameters

in/out	name	description
in	size_b	buffer size in bytes
in	pbuf	pointer to the buffer

Returns

32-bit checksum value

HAL_VencDev_H264_CPU_Register#

hal_venc_status_t HAL_VencDev_H264_CPU_Register ( venc_h264_dev_t * dev )

Parameters

in/out	name	description
in	dev	encoder device to register

Returns

error code (0: success, otherwise: failure)

2.1.2 Data Structure Documentation#

camera_dev_static_config_t#

struct camera_dev_static_config_t

Structure that characterizes the camera device.

Data Fields

type	name	description
int	height	buffer height
int	width	buffer width
int	pitch	buffer pitch
int	left	left position
int	top	top position
int	right	right position
int	bottom	bottom position
mpp_rotate_degree_t	rotate	rotate degree
mpp_flip_mode_t	flip	flip
int	swapByte	swap byte per two bytes
mpp_pixel_format_t	format	pixel format
int	framerate	frame rate
int	stripe_size	stripe size in bytes
bool	stripe	stripe mode
uint32_t	n_streams	number of total output video streams
uint32_t	min_stream_req_cnt	minimum number of enqueue calls to wait for
uint32_t	crt_stream_req_cnt	number of streams requested for enqueue
mpp_exec_flag_t	req_cnt_type	flag to control stream request counting
mpp_camera_stream_cfg	stream[NUM_STREAMS]	stream configuration
bool	stream_requested[NUM_STREAMS]	flag to track if a stream is required for enqueue
void *	stream_requester[NUM_STREAMS][MAX_STREAM_REQUESTERS]	array of requesters for each stream
bool	in_advance_enqueue	flag to indicate advance enqueue mode

camera_dev_private_capability_t#

struct camera_dev_private_capability_t

camera device private capability.

Data Fields

type	name	description
camera_dev_callback_t	callback	callback
void *	param	parameter for the callback

_camera_dev#

struct _camera_dev

Attributes of a camera device.

Data Fields

type	name	description
int	id	unique id which is assigned by camera manager during registration
char	name[HAL_DEVICE_NAME_MAX_LENGTH]	name of the device
const camera_dev_operator_t *	ops	operations
camera_dev_static_config_t	config	static configurations
camera_dev_private_capability_t	cap	private capability
void *	data	device private data

virtual_usb_cam_config_msg_t#

struct virtual_usb_cam_config_msg_t

Structure that characterizes the payload of the camera config message sent from core 0 to core 1.

Data Fields

type	name	description
uint32_t	camera_width	Width of the camera output in pixels.
uint32_t	camera_height	Height of the camera output in pixels.
virtual_usb_cam_col_format_e	color_format	Color format for the camera output (e.g., JPEG)
uint32_t	fps	Frames per second for camera capture rate.

virtual_usb_cam_req_msg_t#

struct virtual_usb_cam_req_msg_t

Structure that characterizes the payload of the camera request message containing frame buffer addresses for RGB and IR data.

Data Fields

type	name	description
uint32_t	rgb_frame_addr	Physical address of the RGB frame buffer.
uint32_t	rgb_max_frame_size	Maximum size allocated for RGB frame buffer.
uint32_t	ir_frame_addr	Physical address of the IR frame buffer.
uint32_t	ir_max_frame_size	Maximum size allocated for IR frame buffer.

virtual_usb_cam_rsp_msg_t#

struct virtual_usb_cam_rsp_msg_t

Structure that characterizes the payload of the camera request message containing frame addresses and sizes for RGB and IR data.

Data Fields

type	name	description
uint32_t	rgb_frame_addr	Physical address of the RGB frame buffer (looped back by the core 1 camera app)
uint32_t	rgb_frame_size	Size in bytes of the RGB frame data.
uint32_t	ir_frame_addr	Physical address of the IR frame buffer (looped back by the core 1 camera app)
uint32_t	ir_frame_size	Size in bytes of the IR frame data.

virtual_usb_cam_msg_t#

struct virtual_usb_cam_msg_t

Structure that characterizes the messages sent between cores.

Data Fields

type	name	description
virtual_usb_cam_msg_type_e	msg_type	Type of message being sent (config, request, response, etc.)
virtual_usb_cam_user_id_e	user_id	Identifier for the user/component sending the message (RTSP or MPP)
union virtual_usb_cam_msg_t::msg_payload_u	msg_payload	Union containing the actual message data based on msg_type.

static_image_static_config_t#

struct static_image_static_config_t

Structure that characterize the image element.

Data Fields

type	name	description
int	height	buffer height
int	width	buffer width
int	left	left position
int	top	top position
int	right	right position
int	bottom	bottom position
mpp_pixel_format_t	format	pixel format
bool	stripe	stripe mode
int	compressed_size	compressed size in bytes

_static_image#

struct _static_image

Attributes of an image element.

Data Fields

type	name	description
int	id	unique id which is assigned by image manager
const static_image_operator_t *	ops	operations
static_image_static_config_t	config	static configs
int	stripe_idx	the current stripe index
uint8_t *	buffer	static image buffer

filesrc_config_t#

struct filesrc_config_t

Structure that characterize the file source element.

Data Fields

type	name	description
char	filepath[FILE_SOURCE_FILEPATH_MAX_LEN]	File name to read.
bool	loop_enabled	Flag to enable looping the file.
int	file_buffer_size	File buffer size in bytes.
slice_search_func_t	slice_search_func	Optional slice search function.

_filesrc#

struct _filesrc

Attributes of a file source element.

Data Fields

type	name	description
const filesrc_operator_t *	ops	operations
filesrc_config_t	config	file source configs
uint8_t *	buffer	Pointer to file read buffer.
uint32_t	buffer_size	File read buffer size.

filesink_config_t#

struct filesink_config_t

Structure that characterize the file sink element.

Data Fields

type	name	description
char	filepath[FILE_SINK_FILEPATH_MAX_LEN]	File name to write.
bool	append_mode	Flag to enable append mode.

_filesink#

struct _filesink

Attributes of a file sink element.

Data Fields

type	name	description
const filesink_operator_t *	ops	operations
filesink_config_t	config	file sink configs

rtspsink_config_t#

struct rtspsink_config_t

Structure that characterize the RTSP sink element.

Data Fields

type	name	description
uint16_t	port	RTSP server port number.
char	ip_addr[IPV4_STR_LEN]	destination IP address string
uint32_t	frame_width	video frame width in pixels
uint32_t	frame_height	video frame height in pixels
rtp_payload_type_t	payload_type	RTP payload type.
rtp_frame_type_t	frame_type	RTP frame type.

_rtspsink#

struct _rtspsink

Attributes of an RTSP sink element.

Data Fields

type	name	description
const rtspsink_operator_t *	ops	operations
rtspsink_config_t	config	RTSP sink configuration.

rtspsrc_config_t#

struct rtspsrc_config_t

Configuration parameters kept inside the RTSP source device.

Data Fields

char rtsp_url[RTSP_URL_MAX_LEN]

_rtspsrc#

struct _rtspsrc

Attributes of an RTSP source element.

Data Fields

type	name	description
const rtspsrc_operator_t *	ops	Operations.
rtspsrc_config_t	config	RTSP source config.
uint8_t *	buffer	Frame reassembly buffer (HAL-allocated)
uint32_t	buffer_size	Size of buffer in bytes.

gfx_surface_t#

struct gfx_surface_t

Gfx surface parameters.

Data Fields

type	name	description
int	height	buffer height
int	width	buffer width
int	pitch	buffer pitch
int	pitch_uv	buffer pitch for chroma planes
int	left	left position
int	top	top position
int	right	right position
int	bottom	bottom position
int	swapByte	swap byte per two bytes
mpp_pixel_format_t	format	pixel format
void *	buf	buffer
void *	buf_u	buffer for chroma plane U
void *	buf_v	buffer for chroma plane V
void *	lock	the structure is determined by hal and set to null if not use in hal

gfx_rotate_config_t#

struct gfx_rotate_config_t

gfx rotate configuration

Data Fields

gfx_rotate_target_t target
mpp_rotate_degree_t degree
float custom_angle

_gfx_dev#

struct _gfx_dev

Attributes of a graphics device.

Data Fields

type	name	description
int	id	unique id
const gfx_dev_operator_t *	ops	operations
gfx_surface_t	src	graphic source surface
gfx_surface_t	dst	graphic destination surface
mpp_callback_t	callback	callback
void *	cb_user_data	param for the callback
void *	user_data	stores the vglite context pointer
mpp_t	mpp	mpp handle to be passed to the callback

hal_rect_t#

struct hal_rect_t

rectangle positions.

Data Fields

int top
int left
int bottom
int right

vdec_h264_frame_info_t#

struct vdec_h264_frame_info_t

H.264 decode frame information structure.

Data Fields

type	name	description
uint8_t *	src_data	pointer to input compressed H.264 bitstream
int32_t	src_size	size of input bitstream in bytes
uint8_t *	dst_y	pointer to output luma (Y) plane
uint8_t *	dst_u	pointer to output chroma U plane
uint8_t *	dst_v	pointer to output chroma V plane
int32_t	width	decoded frame width in pixels
int32_t	height	decoded frame height in pixels
int32_t	y_stride	luma plane stride in bytes
int32_t	uv_stride	chroma plane stride in bytes

_vdec_dev#

struct _vdec_dev

Attributes of a JPEG/image decoder device.

Data Fields

type	name	description
int	id	unique id
const vdec_dev_operator_t *	ops	operations
mpp_callback_t	callback	callback
void *	user_data	param for the callback

_vdec_h264_dev#

struct _vdec_h264_dev

Attributes of an H.264 decoder device.

Data Fields

type	name	description
int	id	unique id
const vdec_h264_dev_operator_t *	ops	operations
mpp_callback_t	callback	callback
void *	user_data	param for the callback

model_param_t#

struct model_param_t

Structure passed to HAL as description of the binary model provided by user.

Data Fields

type	name	description
const void *	model_data	pointer to model binary
int	model_size	model binary size
float	model_input_mean	model ‘mean’ of input values, used for normalization
float	model_input_std	model ‘standard deviation’ of input values, used for normalization
uint32_t	model_id	unique model identifier
mpp_inference_params_t	inference_params	inference parameters
int	height	frame height
int	width	frame width
mpp_pixel_format_t	format	pixel format
mpp_tensor_type_t	inputType	input type
mpp_tensor_order_t	tensor_order	tensor order
mpp_t	mpp	mpp handle
int	(evt_callback_f)(mpp_t mpp, mpp_evt_t evt, void evt_data, void *user_data)	the callback to be called when model output is ready
void *	cb_userdata	pointer to user data, should be passed by callback

valgo_dev_private_capability_t#

struct valgo_dev_private_capability_t

Valgo devices private capability.

Data Fields

type	name	description
void *	param	param for the callback

vision_frame_t#

struct vision_frame_t

Characteristics that need to be defined by a vision algo.

Data Fields

type	name	description
int	height	frame height
int	width	frame width
int	pitch	frame pitch
mpp_pixel_format_t	format	pixel format
void *	input_buf	pixel input buffer

_vision_algo_dev#

struct _vision_algo_dev

Attributes of a vision algo device.

Data Fields

type	name	description
int	id	unique id which is assigned by algorithm manager during the registration
char	name[HAL_DEVICE_NAME_MAX_LENGTH]	name to identify
valgo_dev_private_capability_t	cap	private capability
const vision_algo_dev_operator_t *	ops	operations
vision_algo_private_data_t	priv_data	private data

_display_dev_private_capability#

struct _display_dev_private_capability

Structure that characterizes the display device.

Data Fields

type	name	description
int	height	buffer height
int	width	buffer width
int	pitch	buffer pitch
int	left	left position
int	top	top position
int	right	right position
int	bottom	bottom position
int	stripe_height	stripe height (0 if stripe mode is off)
bool	stripe	stripe mode
mpp_rotate_degree_t	rotate	rotate degree
mpp_pixel_format_t	format	pixel format
int	nbFrameBuffer	number of input buffers
void **	frameBuffers	array of pointers to frame buffer
mpp_callback_t	callback	callback
void *	user_data	parameter for the callback
void *	handle	Handle to the LVGL widget ‘image’.
void **	p_in_buf_addr	Pointer to current input buffer address.

_display_dev#

struct _display_dev

Attributes of a display device.

hal display device declaration. Display devices can be used to display images, GUI overlays, etc. Examples of display devices include display panels like the RK024hh298 display, and external displays like UVC (video over USB).

Data Fields

type	name	description
int	id	unique id which is assigned by the display manager during the registration
char	name[HAL_DEVICE_NAME_MAX_LENGTH]	name of the device
const display_dev_operator_t *	ops	operations
display_dev_private_capability_t	cap	private capability
void *	data	device private data

hw_buf_desc_t#

struct hw_buf_desc_t

the hardware specific buffer requirements

Data Fields

type	name	description
int	stride	the number of bytes between 2 lines of image
int	stride_uv	the number of bytes between 2 lines of UV planes (for planar YUV formats)
int	nb_lines	the number of lines required (set to 0 if the element doesn’t require a specific number of lines)
int	alignment	alignment requirement in bytes
int	max_image_size	the number of bytes allocated
bool	cacheable	if true, HW will require cache maintenance
unsigned char *	addr	the aligned buffer address
unsigned char *	addr_u	the aligned buffer address for chroma plane U (for planar YUV formats)
unsigned char *	addr_v	the aligned buffer address for chroma plane V (for planar YUV formats)
unsigned char *	heap_p	pointer to the heap that should be freed

hal_img_decoder_setup_t#

struct hal_img_decoder_setup_t

Video decoder setup descriptor.

Data Fields

type	name	description
const char *	vdec_dev_name	name of the video decoder device
img_decoder_setup_func_t	decoder_setup_func	pointer to the decoder setup function

hal_graphics_setup_t#

struct hal_graphics_setup_t

Graphics device setup descriptor.

Data Fields

type	name	description
const char *	gfx_dev_name	name of the graphics device
graphic_setup_func_t	gfx_setup_func	pointer to the graphics setup function

hal_display_setup_t#

struct hal_display_setup_t

Display device setup descriptor.

Data Fields

type	name	description
const char *	display_name	name of the display device
display_setup_func_t	display_setup_func	pointer to the display setup function

hal_camera_setup_t#

struct hal_camera_setup_t

Camera device setup descriptor.

Data Fields

type	name	description
const char *	camera_name	name of the camera device
camera_setup_func_t	camera_setup_func	pointer to the camera setup function

checksum_data_t#

struct checksum_data_t

computed checksum

Data Fields

type	name	description
checksum_type_t	type	checksum calculation method
uint32_t	value	checksum value

mc_dev_operator_t#

struct mc_dev_operator_t

Operation that needs to be implemented by a mc device.

Data Fields

type	name	description
hal_mc_status_t	(init)(multicore_dev_t dev, mpp_mc_params_t *config, hal_mc_dev_type_t type)	initialize the dev
hal_mc_status_t	(deinit)(multicore_dev_t dev)	deinitialize the dev
hal_mc_status_t	(start)(multicore_dev_t dev)	start the dev
hal_mc_status_t	(stop)(multicore_dev_t dev)	stop the dev
hal_mc_status_t	(enqueue)(const multicore_dev_t dev, void *data, int compressed_size, int stripe, unsigned short frame_id)	enqueue a buffer to the dev
hal_mc_status_t	(dequeue)(const multicore_dev_t dev, void *data, int compressed_size, int stripe, unsigned short frame_id)	dequeue a buffer from the dev (blocking)
hal_mc_status_t	(get_buf_desc)(const multicore_dev_t dev, void *io_desc, mpp_memory_policy_t prev_mem_policy)	get buffer descriptors and policy
hal_mc_status_t	(lock)(const multicore_dev_t dev)	lock the device for exclusive access and operations
hal_mc_status_t	(unlock)(const multicore_dev_t dev)	unlock the device after exclusive operations

mc_dev_static_buf_config#

struct mc_dev_static_buf_config

Static buffer configuration for mc device.

Data Fields

type	name	description
int	height	buffer height
int	width	buffer width
int	pitch	buffer pitch
mpp_pixel_format_t	format	pixel format
int	stripe_size	stripe size in bytes
bool	stripe	stripe mode
uint32_t	compressed_size	compressed buffer size in bytes

mc_dev_static_config_t#

struct mc_dev_static_config_t

Structure that characterizes the mc device.

Data Fields

type	name	description
hal_mc_dev_type_t	dev_type	device type (sink or source)
mc_dev_static_buf_config	buf_config[MAX_OUTPUT_PORTS]	buffer configuration
bool	initial_enqueue_done	flag to indicate if initial enqueue is done
uint32_t	min_req_cnt	minimum number of buffers required
uint32_t	crt_req_cnt	current number of buffers requested
mpp_exec_flag_t	req_exec_type	execution type for buffer requests
bool	requested[MAX_OUTPUT_PORTS]	buffer request status
bool	enqueued[MAX_OUTPUT_PORTS]	buffer enqueued status
void *	buff_desc[MAX_OUTPUT_PORTS]	hw address to receive data
int	(callback)(mpp_t mpp, mpp_evt_t evt, void evt_data, void *user_data)	optional pipeline event callback - set before calling init to receive MPP_EVENT_MC_REMOTE_DEINIT
void *	cb_user_data	opaque pointer forwarded to callback

_multicore_dev#

struct _multicore_dev

Attributes of a multicore device.

hal mc device declaration. This multicore hardware abstraction layer provides interfaces for multicore communication between elements of pipeline running on different core (multicore sink and multicore source elements).

Data Fields

type	name	description
int	id	unique id which is assigned by mc manager during registration
char	name[HAL_DEVICE_NAME_MAX_LENGTH]	name of the device
const mc_dev_operator_t *	ops	operations
mc_dev_static_config_t	config	static configurations
void *	data	device private data

venc_h264_frame_info_t#

struct venc_h264_frame_info_t

H.264 encode frame information structure.

Data Fields

mpp_pixel_format_t format
uint8_t * src_y
uint8_t * src_u
uint8_t * src_v
int32_t y_stride
int32_t uv_stride
int32_t width
int32_t height
uint8_t * dst
int32_t dst_size
bool intraframe

_venc_h264_dev#

struct _venc_h264_dev

Attributes of an H.264 encoder device.

Data Fields

type	name	description
int	id	unique id
const venc_h264_dev_operator_t *	ops	operations
mpp_callback_t	callback	callback function
void *	user_data	parameter for the callback

2.1.3 Macro Definition Documentation#

MAX_STREAM_REQUESTERS#

#define MAX_STREAM_REQUESTERS

hal camera device declaration.

Camera devices can enqueue and dequeue frames as well as react to events from input devices via the “inputNotify” function. Camera devices can use any number of interfaces, including MIPI and CSI as long as the HAL driver implements the necessary functions found in camera_dev_operator_t . Examples of camera devices include the Orbbec U1S 3D SLM camera module and the OnSemi MT9M114 camera module.

TARGET_CAMERA0_WIDTH#

#define TARGET_CAMERA0_WIDTH

Default width in pixels of camera output for camera 0.

TARGET_CAMERA0_HEIGHT#

#define TARGET_CAMERA0_HEIGHT

Default height in pixels of camera output for camera 0.

TARGET_CAMERA1_WIDTH#

#define TARGET_CAMERA1_WIDTH

Default width in pixels of camera output for camera 1.

TARGET_CAMERA1_HEIGHT#

#define TARGET_CAMERA1_HEIGHT

Default height in pixels of camera output for camera 1.

TARGET_CAMERA0_RESOLUTION#

#define TARGET_CAMERA0_RESOLUTION

Total pixel count for camera 0 resolution.

TARGET_CAMERA1_RESOLUTION#

#define TARGET_CAMERA1_RESOLUTION

Total pixel count for camera 1 resolution.

TARGET_CAMERA_MAX_RESOLUTION#

#define TARGET_CAMERA_MAX_RESOLUTION

Maximum pixel count across all camera resolutions.

TARGET_CAMERA_FPS#

#define TARGET_CAMERA_FPS

Default camera capture rate in frames per second.

CAMERA_DEV_BUFFER_ALIGN#

#define CAMERA_DEV_BUFFER_ALIGN

Buffer alignment requirement for camera device buffers in bytes.

CORE1_EPT_ADDRESS#

#define CORE1_EPT_ADDRESS

Endpoint address for Core 1 inter-core communication channel.

MPP_EPT_ADDRESS#

#define MPP_EPT_ADDRESS

Endpoint address for MPP (Media Processing Pipeline) inter-core communication channel.

MPP might use a range of endpoints starting with 40 and up to 49 included

RTSP_EPT_ADDRESS#

#define RTSP_EPT_ADDRESS

Endpoint address for RTSP (Real Time Streaming Protocol) inter-core communication channel.

APP_EP_READY_EVENT_DATA#

#define APP_EP_READY_EVENT_DATA

Event data value indicating that the application endpoint is ready for communication.

FILE_SOURCE_FILEPATH_MAX_LEN#

#define FILE_SOURCE_FILEPATH_MAX_LEN

Maximum file path length for file source elements.

FILE_SINK_FILEPATH_MAX_LEN#

#define FILE_SINK_FILEPATH_MAX_LEN

Maximum file path length for file sink elements.

HAL_GFX_DEV_CPU_NAME#

#define HAL_GFX_DEV_CPU_NAME

hal graphics (gfx) device declaration.

Graphics processing devices can be used to perform conversion from one image format to another, resize images and compose images on top of one another. Examples of graphics devices include the PXP (pixel pipeline) found on many i.MXRT series MCUs. Name of the graphic device using CPU operations

GUI_PRINTF_BUF_SIZE#

#define GUI_PRINTF_BUF_SIZE

Local text buffer size.

HAL_VDEC_DEV_NAME#

#define HAL_VDEC_DEV_NAME

hal video decoder (vdec) device declaration.

Video decoder devices can be used to perform decompression of image. Examples of decoder devices include the PNG/JPEG HW or SW found on many i.MXRT series MCUs. Name of the jpeg decoder device using CPU operations

MAX_INPUT_PORTS#

#define MAX_INPUT_PORTS

HAL public types header.

maximum number of element inputs

MAX_OUTPUT_PORTS#

#define MAX_OUTPUT_PORTS

Maximum number of element outputs.

HAL_DEVICE_NAME_MAX_LENGTH#

#define HAL_DEVICE_NAME_MAX_LENGTH

maximum length of device name

HAL_VENC_DEV_NAME#

#define HAL_VENC_DEV_NAME

hal video encoder (venc) device declaration.

Video encoder devices can be used to perform compressing of image / video data. Examples of decoder devices include the H.264 SW encoder present in SDK. Name of the H.264 encoder device using CPU operations

2.1.4 Typedef Documentation#

camera_dev_callback_t#

typedef int(* camera_dev_callback_t)(const camera_dev_t *dev, camera_event_t event, void *param, uint8_t fromISR)

Callback function to notify camera manager that one frame is dequeued.

vision_algo_private_data_t#

typedef void * vision_algo_private_data_t

Opaque private data pointer for vision algorithm devices.

mpp_callback_t#

typedef int(* mpp_callback_t)(mpp_t mpp, mpp_evt_t evt, void *evt_data, void *user_data)

The mpp callback function prototype.

img_decoder_setup_func_t#

typedef int(* img_decoder_setup_func_t)(vdec_dev_t *)

Video decoder setup function pointer type.

graphic_setup_func_t#

typedef int(* graphic_setup_func_t)(gfx_dev_t *)

Graphics setup function pointer type.

display_setup_func_t#

typedef int(* display_setup_func_t)(display_dev_t *)

Display setup function pointer type.

camera_setup_func_t#

typedef int(* camera_setup_func_t)(const char *, camera_dev_t *)

Camera setup function pointer type.

2.1.5 Enumeration Type Documentation#

hal_camera_status_t#

enum hal_camera_status_t

{ kStatus_HAL_CameraSuccess,

kStatus_HAL_CameraBusy,

kStatus_HAL_CameraNoData,

kStatus_HAL_CameraNonBlocking,

kStatus_HAL_CameraError }

Camera return status.

camera_event_t#

enum camera_event_t

{ kCameraEvent_SendFrame,

kCameraEvent_CameraDeviceInit }

Type of events that are supported by calling the callback function.

virtual_usb_cam_msg_type_e#

enum virtual_usb_cam_msg_type_e

{ VIRT_USB_CAM_NOMSG,

VIRT_USB_CAM_CONFIG,

VIRT_USB_CAM_CONFIG_ACK,

VIRT_USB_CAM_CONFIG_ERR,

VIRT_USB_CAM_REQRGB,

VIRT_USB_CAM_REQIR,

VIRT_USB_CAM_REQRGBIR,

VIRT_USB_CAM_RSPRGB,

VIRT_USB_CAM_RSPIR,

VIRT_USB_CAM_RSPRGBIR,

VIRT_USB_CAM_ERROR }

Structure that characterizes the exchanged message types between core 0 and core 1.

virtual_usb_cam_user_id_e#

enum virtual_usb_cam_user_id_e

{ RTSP_USER_ID,

MPP_USER_ID }

User identifier for multicore virtual camera messages.

virtual_usb_cam_col_format_e#

enum virtual_usb_cam_col_format_e

{ VIRT_USB_CAM_JPEG }

Structure that characterizes the color format for the camera output.

hal_image_status_t#

enum hal_image_status_t

{ MPP_kStatus_HAL_ImageSuccess,

MPP_kStatus_HAL_ImageError }

static image return status

hal_filesrc_status_t#

enum hal_filesrc_status_t

{ MPP_kStatus_HAL_FileSrcSuccess,

MPP_kStatus_HAL_FileSrcError,

MPP_kStatus_HAL_FileSrcEOF }

File source return status.

hal_filesink_status_t#

enum hal_filesink_status_t

{ MPP_kStatus_HAL_FileSinkSuccess,

MPP_kStatus_HAL_FileSinkError }

File sink return status.

gfx_rotate_target_t#

enum gfx_rotate_target_t

{ kGFXRotateTarget_None,

kGFXRotate_SRCSurface,

kGFXRotate_DSTSurface }

gfx rotate target

hal_vdec_status_t#

enum hal_vdec_status_t

{ MPP_kStatus_HAL_VDecSuccess,

MPP_kStatus_HAL_VDecSkipped,

MPP_kStatus_HAL_VDecError }

video decoder return status

hal_valgo_status_t#

enum hal_valgo_status_t

{ kStatus_HAL_ValgoSuccess,

kStatus_HAL_ValgoMallocError,

kStatus_HAL_ValgoInitError,

kStatus_HAL_ValgoError,

kStatus_HAL_ValgoStop }

Valgo Error codes for hal operations.

display_event_t#

enum display_event_t

{ kDisplayEvent_RequestFrame }

Type of events that are supported by calling the callback function.

hal_display_status_t#

enum hal_display_status_t

{ kStatus_HAL_DisplaySuccess,

kStatus_HAL_DisplayTxBusy,

kStatus_HAL_DisplayNonBlocking,

kStatus_HAL_DisplayError }

Error codes for display hal devices.

mpp_memory_policy_t#

enum mpp_memory_policy_t

{ HAL_MEM_ALLOC_NONE,

HAL_MEM_ALLOC_INPUT,

HAL_MEM_ALLOC_OUTPUT,

HAL_MEM_ALLOC_BOTH }

The memory allocation policy of an element’s hal.

During the pipeline construction, the HAL uses this enum to tell the pipeline if it already owns input/ouput buffers. Before the pipeline starts, the memory manager will map the existing buffers to elements and allocate missing buffers from the heap.

checksum_type_t#

enum checksum_type_t

{ CHECKSUM_TYPE_PISANO,

CHECKSUM_TYPE_CRC_ELCDIF }

checksum calculation method

hal_mc_status_t#

enum hal_mc_status_t

{ kStatus_HAL_MultiCoreSuccess,

kStatus_HAL_MultiCoreError,

kStatus_HAL_MultiCoreNoDataReq }

multicore return status

hal_mc_dev_type_t#

enum hal_mc_dev_type_t

{ kHAL_MultiCoreDevTypeSink,

kHAL_MultiCoreDevTypeSource }

Multicore device type.

hal_venc_status_t#

enum hal_venc_status_t

{ MPP_kStatus_HAL_VEncSuccess,

MPP_kStatus_HAL_VEncError }

video encoder return status

Chapter 3#

Data Structures

struct camera_dev_operator_t
struct static_image_operator_t
struct filesrc_operator_t
struct filesink_operator_t
struct rtspsink_operator_t
struct rtspsrc_operator_t
struct gfx_dev_operator_t
struct vdec_dev_operator_t
struct vdec_h264_dev_operator_t
struct vision_algo_dev_operator_t
struct display_dev_operator_t
struct venc_h264_dev_operator_t

Typedefs

typedef int(* mpp_callback_t)(mpp_t mpp, mpp_evt_t evt, void *evt_data, void *user_data)

Functions

void GUI_DrawText (uint16_t * lcd_buf, uint16_t fcolor, uint16_t bcolor, uint32_t width, int x, int y, const char * label)
void hal_draw_pixel565 (uint16_t * pDst, uint32_t x, uint32_t y, uint16_t color, uint32_t lcd_w)
void hal_draw_text565 (uint16_t * lcd_buf, uint16_t fcolor, uint16_t bcolor, uint32_t width, int x, int y, const char * label, int stripe_top, int stripe_bottom)
void hal_draw_rect565 (uint16_t * lcd_buf, hal_rect_t rect, mpp_color_t rgb, uint32_t width, int stripe_top, int stripe_bottom)
int get_bitpp (mpp_pixel_format_t type)
void swap_2_bytes (uint8_t * data, int size)

3.1 HAL OPERATIONS#

This section provides the detailed documentation for the MPP HAL operations that needs to be implemented for each component.

3.1.1 Function Documentation#

GUI_DrawText#

void GUI_DrawText ( uint16_t * lcd_buf, uint16_t fcolor, uint16_t bcolor, uint32_t width, int x, int y, const char * label )

Draws text stored in label pointer to LCD buffer.

This function copy content of data from label text buffer to the LCD.

Parameters

in/out	name	description
	lcd_buf	LCD buffer address destination for drawing text
	fcolor	foreground color in rgb565 format
	bcolor	background color in rgb565 format
	width	LCD width
	x	drawing position on X axe
	y	drawing position on Y axe
	label	C string pointed by label

hal_draw_pixel565#

void hal_draw_pixel565 ( uint16_t * pDst, uint32_t x, uint32_t y, uint16_t color, uint32_t lcd_w )

Draws pixel with RGB565 color to defined point.

Parameters

in/out	name	description
	pDst	image data address of destination buffer
	x	drawing position on X axe
	y	drawing position on Y axe
	color	RGB565 encoded value
	lcd_w	lcd width

hal_draw_text565#

void hal_draw_text565 ( uint16_t * lcd_buf, uint16_t fcolor, uint16_t bcolor, uint32_t width, int x, int y, const char * label, int stripe_top, int stripe_bottom )

Draws text stored in label pointer to LCD buffer.

This function copy content of data from label text buffer to the LCD.

Parameters

in/out	name	description
	lcd_buf	LCD buffer address destination for drawing text
	fcolor	foreground color in rgb565 format
	bcolor	background color in rgb565 format
	width	LCD width in pixels
	x	drawing position on X axis
	y	drawing position on Y axis
	label	C string to draw
	stripe_top	top boundary of the stripe in which to draw (pixels from top)
	stripe_bottom	bottom boundary of the stripe in which to draw (pixels from top)

hal_draw_rect565#

void hal_draw_rect565 ( uint16_t * lcd_buf, hal_rect_t rect, mpp_color_t rgb, uint32_t width, int stripe_top, int stripe_bottom )

Draws rectangle.

Parameters

in/out	name	description
in	lcd_buf	LCD buffer address destination for drawing rectangle
in	rect	rectangle position and size (top, left, bottom, right)
in	rgb	color encoded as mpp_color_t (r, g, b fields)
in	width	LCD width in pixels
in	stripe_top	top boundary of the stripe in which to draw (pixels from top)
in	stripe_bottom	bottom boundary of the stripe in which to draw (pixels from top)

get_bitpp#

int get_bitpp ( mpp_pixel_format_t type )

Returns the number of bits per pixel for a given format.

Parameters

in/out	name	description
in	type	pixel format

Returns

bits per pixel, or 0 for unknown format

swap_2_bytes#

void swap_2_bytes ( uint8_t * data, int size )

Swaps a buffer’s MSB and LSB bytes.

Parameters

in/out	name	description
	data	pointer to the buffer to be converted(from little endian to big endian and vice-versa).
	size	buffer size.

3.1.2 Data Structure Documentation#

camera_dev_operator_t#

struct camera_dev_operator_t

Operation that needs to be implemented by a camera device.

Data Fields

type	name	description
hal_camera_status_t	(init)(camera_dev_t dev, mpp_camera_params_t config, camera_dev_callback_t callback, void param)	initialize the dev
hal_camera_status_t	(deinit)(camera_dev_t dev)	deinitialize the dev
hal_camera_status_t	(start)(const camera_dev_t dev)	start the dev
hal_camera_status_t	(stop)(const camera_dev_t dev)	stop the dev
hal_camera_status_t	(enqueue)(const camera_dev_t dev, void *data)	enqueue a buffer to the dev
hal_camera_status_t	(dequeue)(const camera_dev_t dev, void *data, int stripe, int *compressed_size)	dequeue a buffer from the dev (blocking)
hal_camera_status_t	(get_buf_desc)(const camera_dev_t dev, hw_buf_desc_t out_buf, mpp_memory_policy_t policy)	get buffer descriptors and policy
hal_camera_status_t	(lock)(const camera_dev_t dev)	lock the device for exclusive access and operations
hal_camera_status_t	(unlock)(const camera_dev_t dev)	unlock the device after exclusive operations

static_image_operator_t#

struct static_image_operator_t

Operation that needs to be implemented by an image element.

Data Fields

type	name	description
hal_image_status_t	(init)(static_image_t elt, mpp_img_params_t config, void param)	initialize the elt
hal_image_status_t	(dequeue)(static_image_t elt, hw_buf_desc_t out_buf, int stripe_num)	dequeue a buffer from the elt

filesrc_operator_t#

struct filesrc_operator_t

Operation that needs to be implemented by a file source element.

Data Fields

type	name	description
hal_filesrc_status_t	(init)(filesrc_t dev, mpp_filesrc_params_t config, void param)	initialize the dev
hal_filesrc_status_t	(deinit)(filesrc_t dev)	deinitialize the dev
hal_filesrc_status_t	(start)(const filesrc_t dev)	start the dev
hal_filesrc_status_t	(stop)(const filesrc_t dev)	stop the dev
hal_filesrc_status_t	(dequeue)(const filesrc_t dev, void *data, uint32_t size)	dequeue a buffer
hal_filesrc_status_t	(get_buf_desc)(const filesrc_t dev, hw_buf_desc_t out_buf, mpp_memory_policy_t policy)	get buffer descriptors and policy

filesink_operator_t#

struct filesink_operator_t

Operation that needs to be implemented by a file sink element.

Data Fields

type	name	description
hal_filesink_status_t	(init)(filesink_t dev, mpp_filesink_params_t config, void param)	initialize the dev
hal_filesink_status_t	(deinit)(filesink_t dev)	deinitialize the dev
hal_filesink_status_t	(start)(const filesink_t dev)	start the dev
hal_filesink_status_t	(stop)(const filesink_t dev)	stop the dev
hal_filesink_status_t	(enqueue)(const filesink_t dev, void *data, uint32_t size)	enqueue a buffer
hal_filesink_status_t	(get_buf_desc)(const filesink_t dev, hw_buf_desc_t in_buf, mpp_memory_policy_t policy)	get buffer descriptors and policy

rtspsink_operator_t#

struct rtspsink_operator_t

Operation that needs to be implemented by an RTSP sink element.

Data Fields

type	name	description
hal_rtspsink_status_t	(init)(rtspsink_t dev, mpp_rtspsink_params_t config, void param)	initialize the dev
hal_rtspsink_status_t	(deinit)(rtspsink_t dev)	deinitialize the dev
hal_rtspsink_status_t	(start)(const rtspsink_t dev)	start the dev
hal_rtspsink_status_t	(stop)(const rtspsink_t dev)	stop the dev
hal_rtspsink_status_t	(enqueue)(const rtspsink_t dev, void *data, uint32_t size)	enqueue a buffer
hal_rtspsink_status_t	(get_buf_desc)(const rtspsink_t dev, hw_buf_desc_t in_buf, mpp_memory_policy_t policy)	get buffer descriptors and policy

rtspsrc_operator_t#

struct rtspsrc_operator_t

Operations that need to be implemented by an RTSP source element.

Data Fields

type	name	description
hal_rtspsrc_status_t	(init)(rtspsrc_t dev, mpp_rtspsrc_params_t *config)	initialize the RTSP source device
hal_rtspsrc_status_t	(deinit)(rtspsrc_t dev)	de-initialize the RTSP source device
hal_rtspsrc_status_t	(start)(const rtspsrc_t dev)	start streaming
hal_rtspsrc_status_t	(stop)(const rtspsrc_t dev)	stop streaming
hal_rtspsrc_status_t	(dequeue)(const rtspsrc_t dev, void *data, uint32_t size)	dequeue a received buffer
hal_rtspsrc_status_t	(get_buf_desc)(const rtspsrc_t dev, hw_buf_desc_t out_buf, mpp_memory_policy_t policy)	get buffer descriptor and memory policy

gfx_dev_operator_t#

struct gfx_dev_operator_t

Operation that needs to be implemented by gfx device.

Data Fields

type	name	description
int	(init)(gfx_dev_t dev, void *param)	initialize the dev
int	(deinit)(gfx_dev_t dev)	deinitialize the dev
int	(get_buf_desc)(const gfx_dev_t dev, hw_buf_desc_t in_buf, hw_buf_desc_t out_buf, mpp_memory_policy_t *policy)	get buffer descriptors and policy
int	(blit)(const gfx_dev_t dev, const gfx_surface_t pSrc, const gfx_surface_t pDst, const gfx_rotate_config_t *pRotate, mpp_flip_mode_t flip)	blit source to destination surface
int	(drawRect)(const gfx_dev_t dev, gfx_surface_t *pOverlay, int x, int y, int w, int h, int color)	draw rectangle in overlay surface
int	(drawPicture)(const gfx_dev_t dev, gfx_surface_t pOverlay, int x, int y, int w, int h, int alpha, const char pIcon)	draw picture in overlay surface
int	(drawText)(const gfx_dev_t dev, gfx_surface_t pOverlay, int x, int y, int textColor, int bgColor, int type, const char pText)	draw text in overlay surface
int	(compose)(const gfx_dev_t dev, gfx_surface_t pSrc, gfx_surface_t pOverlay, gfx_surface_t pDst, gfx_rotate_config_t pRotate, mpp_flip_mode_t flip)	blit source with overlay to destination surface
int	(finish)(gfx_dev_t dev)	finalize rendering into destination surface

vdec_dev_operator_t#

struct vdec_dev_operator_t

Operation that needs to be implemented by vdec device.

Operation that needs to be implemented by a JPEG/image decoder device

Data Fields

type	name	description
int	(init)(vdec_dev_t dev, void *param)	initialize the dev
int	(deinit)(const vdec_dev_t dev)	deinitialize the dev
int	(get_buf_desc)(const vdec_dev_t dev, hw_buf_desc_t in_buf, hw_buf_desc_t out_buf, mpp_memory_policy_t *policy)	get buffer descriptors and policy
int	(decode)(const vdec_dev_t dev, uint8_t pSrc, uint8_t pDst, int32_t jpg_size, uint32_t row_stride)	decode image data

vdec_h264_dev_operator_t#

struct vdec_h264_dev_operator_t

Operation that needs to be implemented by an H.264 decoder device.

Data Fields

type	name	description
hal_vdec_status_t	(init)(vdec_h264_dev_t dev, void *param)	initialize the dev
hal_vdec_status_t	(deinit)(const vdec_h264_dev_t dev)	deinitialize the dev
hal_vdec_status_t	(get_buf_desc)(const vdec_h264_dev_t dev, hw_buf_desc_t in_buf, hw_buf_desc_t out_buf, mpp_memory_policy_t *policy)	get buffer descriptors and policy
hal_vdec_status_t	(decode)(const vdec_h264_dev_t dev, vdec_h264_frame_info_t *frame_info)	decode H.264 frame

vision_algo_dev_operator_t#

struct vision_algo_dev_operator_t

Operation that needs to be implemented by a vision algorithm device.

Data Fields

type	name	description
hal_valgo_status_t	(init)(vision_algo_dev_t dev, model_param_t *param)	initialize the dev
hal_valgo_status_t	(deinit)(vision_algo_dev_t dev)	deinitialize the dev
hal_valgo_status_t	(run)(const vision_algo_dev_t dev, void *data)	start the dev
hal_valgo_status_t	(get_buf_desc)(const vision_algo_dev_t dev, hw_buf_desc_t in_buf, mpp_memory_policy_t policy)	read input parameters

display_dev_operator_t#

struct display_dev_operator_t

Operation that needs to be implemented by a display device.

Data Fields

type	name	description
hal_display_status_t	(init)(display_dev_t dev, mpp_display_params_t config, mpp_callback_t callback, void user_data)	initialize the dev
hal_display_status_t	(deinit)(const display_dev_t dev)	deinitialize the dev
hal_display_status_t	(start)(display_dev_t dev)	start the dev
hal_display_status_t	(stop)(display_dev_t dev)	stop the dev
hal_display_status_t	(blit)(const display_dev_t dev, void *frame, int stripe)	blit a buffer to the dev
hal_display_status_t	(get_buf_desc)(const display_dev_t dev, hw_buf_desc_t in_buf, mpp_memory_policy_t policy)	get buffer descriptors and policy

venc_h264_dev_operator_t#

struct venc_h264_dev_operator_t

Operations that need to be implemented by an H.264 encoder device.

Data Fields

type	name	description
hal_venc_status_t	(init)(venc_h264_dev_t dev, void *param)	initialize the device
hal_venc_status_t	(deinit)(const venc_h264_dev_t dev)	deinitialize the device
hal_venc_status_t	(get_buf_desc)(const venc_h264_dev_t dev, hw_buf_desc_t in_buf, hw_buf_desc_t out_buf, mpp_memory_policy_t *policy)	get buffer descriptors and policy
hal_venc_status_t	(encode)(const venc_h264_dev_t dev, venc_h264_frame_info_t *frame_info)	encode the incoming data

3.1.3 Typedef Documentation#

mpp_callback_t#

typedef int(* mpp_callback_t)(mpp_t mpp, mpp_evt_t evt, void *evt_data, void *user_data)

The mpp callback function prototype.

Chapter 4#

Functions

int hal_label_rectangle (uint8_t * frame, int width, int height, mpp_pixel_format_t format, mpp_labeled_rect_t * lr, int stripe, int stripe_max)
int hal_landmark (uint8_t * frame, int width, int height, mpp_pixel_format_t format, mpp_landmark_t * lk, int stripe, int stripe_max)
int hal_inference_tflite_setup (vision_algo_dev_t * dev)
int hal_inference_executorch_setup (vision_algo_dev_t * dev)
int hal_display_setup (const char * name, display_dev_t * dev)
int hal_camera_setup (const char * name, camera_dev_t * dev)
int hal_gfx_setup (const char * name, gfx_dev_t * dev)
int hal_img_decoder_setup (const char * name, vdec_dev_t * dev)
int hal_mc_dev_setup (const char * name, multicore_dev_t * dev)

4.1 HAL Setup Functions#

This section provides the detailed documentation for the HAL setup functions that should be defined by each device.

4.1.1 Function Documentation#

hal_label_rectangle#

int hal_label_rectangle ( uint8_t * frame, int width, int height, mpp_pixel_format_t format, mpp_labeled_rect_t * lr, int stripe, int stripe_max )

Implementation of hal labeled rectangle component that draws a rectangle and a text on an input image.

Parameters

in/out	name	description
in	frame	The buffer address
in	width	Image width
in	height	Image height
in	format	Image format
in	lr	Labeled rectangle parameters
in	stripe	stripe number (0=no stripe)
in	stripe_max	max nb of stripes

Returns

hal_landmark#

int hal_landmark ( uint8_t * frame, int width, int height, mpp_pixel_format_t format, mpp_landmark_t * lk, int stripe, int stripe_max )

Implementation of hal landmark component that draws a landmark on an input image.

Parameters

in/out	name	description
in	frame	The buffer address
in	width	Image width
in	height	Image height
in	format	Image format
in	lk	landmark parameters
in	stripe	stripe number (0=no stripe)
in	stripe_max	max nb of stripes

Returns

hal_inference_tflite_setup#

int hal_inference_tflite_setup ( vision_algo_dev_t * dev )

Hal setup function for inference engine Tensorflow-Lite Micro.

Parameters

in/out	name	description
in	dev	vision algo device to register

Returns

error code (0: success, otherwise: failure)

hal_inference_executorch_setup#

int hal_inference_executorch_setup ( vision_algo_dev_t * dev )

Hal setup function for inference engine ExecuTorch.

Parameters

in/out	name	description
in	dev	vision algo device to register

Returns

error code (0: success, otherwise: failure)

hal_display_setup#

int hal_display_setup ( const char * name, display_dev_t * dev )

If name is NULL, return error.

Parameters

in/out	name	description
in	name	display name
in	dev	display device to register

Returns

error code (0: success, otherwise: failure)

hal_camera_setup#

int hal_camera_setup ( const char * name, camera_dev_t * dev )

If name is NULL, return error.

Parameters

in/out	name	description
in	name	camera name
in	dev	camera device to register

Returns

error code (0: success, otherwise: failure)

hal_gfx_setup#

int hal_gfx_setup ( const char * name, gfx_dev_t * dev )

If name is NULL, the first available graphic processing supported by Hw will be selected. The graphic device using CPU operations will be selected if name is not specified and if no graphic processing is available for the Hw.

Parameters

in/out	name	description
in	name	graphic processing device performing the image conversion
in	dev	graphic device to register

Returns

error code (0: success, otherwise: failure)

hal_img_decoder_setup#

int hal_img_decoder_setup ( const char * name, vdec_dev_t * dev )

If name is NULL, the first available decoder supported by Hw will be selected. The decoder device using CPU operations will be selected if name is not specified and if no decoder is available for the Hw.

Parameters

in/out	name	description
in	name	image decoding device name
in	dev	decoder device to register

Returns

error code (0: success, otherwise: failure)

hal_mc_dev_setup#

int hal_mc_dev_setup ( const char * name, multicore_dev_t * dev )

Parameters

in/out	name	description
in	name	multicore device name
in	dev	multicore device to register

Returns

error code (0: success, otherwise: failure)

eIQ MPP Hardware Abstraction Layer API

Contents

eIQ MPP Hardware Abstraction Layer API#

Chapter 1#

1.1 HAL overview#

1.1.1 MPP HAL description#

1.1.2 MPP HAL components#

1.1.3 Supported devices#

1.1.4 Supported boards#

Chapter 2#

2.1 HAL Types#

2.1.1 Function Documentation#

search_h264_nalu#

HAL_GfxDev_CPU_Register#

HAL_GfxDev_GPU_Register#

HAL_JPEG_PrintValidationStats#

HAL_JPEG_CPU_Register#

HAL_JPEG_HW_Register#

HAL_VdecDev_H264_CPU_Register#

setup_static_image_elt#

setup_filesrc_elt#

setup_rtspsrc_elt#

calc_checksum#

HAL_VencDev_H264_CPU_Register#

2.1.2 Data Structure Documentation#

camera_dev_static_config_t#

camera_dev_private_capability_t#

_camera_dev#

virtual_usb_cam_config_msg_t#

virtual_usb_cam_req_msg_t#

virtual_usb_cam_rsp_msg_t#

virtual_usb_cam_msg_t#

static_image_static_config_t#

_static_image#

filesrc_config_t#

_filesrc#

filesink_config_t#

_filesink#

rtspsink_config_t#

_rtspsink#

rtspsrc_config_t#

_rtspsrc#

gfx_surface_t#

gfx_rotate_config_t#

_gfx_dev#

hal_rect_t#

vdec_h264_frame_info_t#

_vdec_dev#

_vdec_h264_dev#

model_param_t#

valgo_dev_private_capability_t#

vision_frame_t#

_vision_algo_dev#

_display_dev_private_capability#

_display_dev#

hw_buf_desc_t#

hal_img_decoder_setup_t#

hal_graphics_setup_t#

hal_display_setup_t#

hal_camera_setup_t#

checksum_data_t#

mc_dev_operator_t#

mc_dev_static_buf_config#

mc_dev_static_config_t#

_multicore_dev#

venc_h264_frame_info_t#

_venc_h264_dev#

2.1.3 Macro Definition Documentation#

MAX_STREAM_REQUESTERS#

TARGET_CAMERA0_WIDTH#

TARGET_CAMERA0_HEIGHT#

TARGET_CAMERA1_WIDTH#

TARGET_CAMERA1_HEIGHT#

TARGET_CAMERA0_RESOLUTION#

TARGET_CAMERA1_RESOLUTION#

TARGET_CAMERA_MAX_RESOLUTION#

TARGET_CAMERA_FPS#

CAMERA_DEV_BUFFER_ALIGN#

CORE1_EPT_ADDRESS#

MPP_EPT_ADDRESS#
