diff_p_normal.c File Reference

The diff_p_normal.c file implements the ISSDK DIFF_P sensor driver example demonstration with polling mode. More...

#include "board.h"
#include "pin_mux.h"
#include "clock_config.h"
#include "fsl_debug_console.h"
#include "Driver_I2C.h"
#include "issdk_hal.h"
#include "diff_p_drv.h"
#include "systick_utils.h"

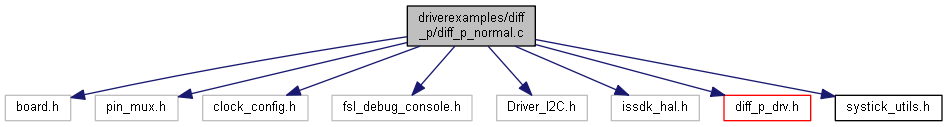

Include dependency graph for diff_p_normal.c:

Go to the source code of this file.

Macros
#define	DIFF_P_DATA_SIZE   (3) /* 2 byte Pressure and 1 byte Temperature. */

Functions
int	main (void)
	Main function. More...

Variables
const registerwritelist_t	cDiffPConfigNormal []
	Register settings for Normal Mode. More...
const registerwritelist_t	cDiffPClearStatusBits []
	Register settings for Clearing Pressure and Temperature Data Ready Bits. More...
const registerreadlist_t	cDiffPStatus [] = {{.readFrom = DIFF_P_INT_STATUS_0, .numBytes = 1}, __END_READ_DATA__}
	Address of Status Register. More...
const registerreadlist_t	cDiffPOutputNormal []
	Address and size of Raw Pressure+Temperature Data in Normal Mode. More...

Detailed Description

The diff_p_normal.c file implements the ISSDK DIFF_P sensor driver example demonstration with polling mode.

Definition in file diff_p_normal.c.

Macro Definition Documentation

DIFF_P_DATA_SIZE

#define DIFF_P_DATA_SIZE   (3) /* 2 byte Pressure and 1 byte Temperature. */

Definition at line 61 of file diff_p_normal.c.

Referenced by main().

Function Documentation

main()

int main

(

void

)

Main function.

Initialize the I2C driver.

Set the I2C Power mode.

Set the I2C bus speed.

Initialize DIFF_P sensor driver.

Set the task to be executed while waiting for I2C transactions to complete.

Configure the DIFF_P sensor.

Check for both data ready bits from the DIFF_P.

Read new raw sensor data from the DIFF_P.

Explicitly clear the Status Bits.

Process the sample and convert the raw sensor data.

Definition at line 89 of file diff_p_normal.c.

References ASK_USER_TO_RESUME, BOARD_BootClockRUN, BOARD_InitDebugConsole(), BOARD_InitPins(), BOARD_SystickEnable(), data, diff_p_i2c_sensorhandle_t::deviceInfo, DIFF_P_DATA_SIZE, DIFF_P_I2C_ADDR, DIFF_P_I2C_Configure(), DIFF_P_I2C_Initialize(), DIFF_P_I2C_ReadData(), DIFF_P_I2C_SetIdleTask(), DIFF_P_INT_STATUS_0_PDR_DRDY, DIFF_P_INT_STATUS_0_PDR_MASK, DIFF_P_INT_STATUS_0_TDR_DRDY, DIFF_P_INT_STATUS_0_TDR_MASK, DIFF_P_NPS3000VV_WHOAMI_VALUE, DIFF_P_NPS3001DV_WHOAMI_VALUE, DIFF_P_NPS3002VV_WHOAMI_VALUE, DIFF_P_NPS3005DV_WHOAMI_VALUE, I2C_S_DEVICE_INDEX, I2C_S_DRIVER, I2C_S_SIGNAL_EVENT, int32_t(), NPS3000VV_PRESSURE_DIV_FACTOR, NPS3001DV_PRESSURE_DIV_FACTOR, NPS3002VV_PRESSURE_DIV_FACTOR, NPS3005DV_PRESSURE_DIV_FACTOR, diff_p_i2c_sensorhandle_t::pCommDrv, diff_p_pressuredata_t::pressure, rawData, SENSOR_ERROR_NONE, Sensor_I2C_Write(), diff_p_i2c_sensorhandle_t::slaveAddress, SMC, SMC_SetPowerModeWait(), status, and diff_p_pressuredata_t::temperature.

Here is the call graph for this function:

Variable Documentation

cDiffPClearStatusBits

const registerwritelist_t cDiffPClearStatusBits[]

Initial value:

= {
    {DIFF_P_INT_STATUS_0, 0x00, DIFF_P_INT_STATUS_0_TDR_MASK | DIFF_P_INT_STATUS_0_PDR_MASK}, __END_WRITE_DATA__}

Register settings for Clearing Pressure and Temperature Data Ready Bits.

Definition at line 73 of file diff_p_normal.c.

cDiffPConfigNormal

const registerwritelist_t cDiffPConfigNormal[]

Initial value:

= {
    {DIFF_P_CTRL_REG2, DIFF_P_CTRL_REG2_ODR_ODR6P25, DIFF_P_CTRL_REG2_ODR_MASK},
    {DIFF_P_CTRL_REG1, DIFF_P_CTRL_REG1_OSR_OSR512, DIFF_P_CTRL_REG1_OSR_MASK},
    __END_WRITE_DATA__}

Register settings for Normal Mode.

Definition at line 67 of file diff_p_normal.c.

cDiffPOutputNormal

const registerreadlist_t cDiffPOutputNormal[]

Initial value:

= {{.readFrom = DIFF_P_OUT_P_LSB, .numBytes = DIFF_P_DATA_SIZE},
                                                 __END_READ_DATA__}

Address and size of Raw Pressure+Temperature Data in Normal Mode.

Definition at line 80 of file diff_p_normal.c.

cDiffPStatus

const registerreadlist_t cDiffPStatus[] = {{.readFrom = DIFF_P_INT_STATUS_0, .numBytes = 1}, __END_READ_DATA__}

Address of Status Register.

Definition at line 77 of file diff_p_normal.c.
