Command line for MCUXpresso Installer

The MCUXpresso Installer tool offers command-line support for installing available tools or checking the status of installed ones. The MCUXpressoInstallerCLI executable is included alongside the GUI executable on all operating systems.

Help command

• -h, --help - Display help for commands.

Check updates command

• --check-updates - Check if MCUXpresso Installer has updates.

Version command

• -v, --version - Display the application version.

Install command

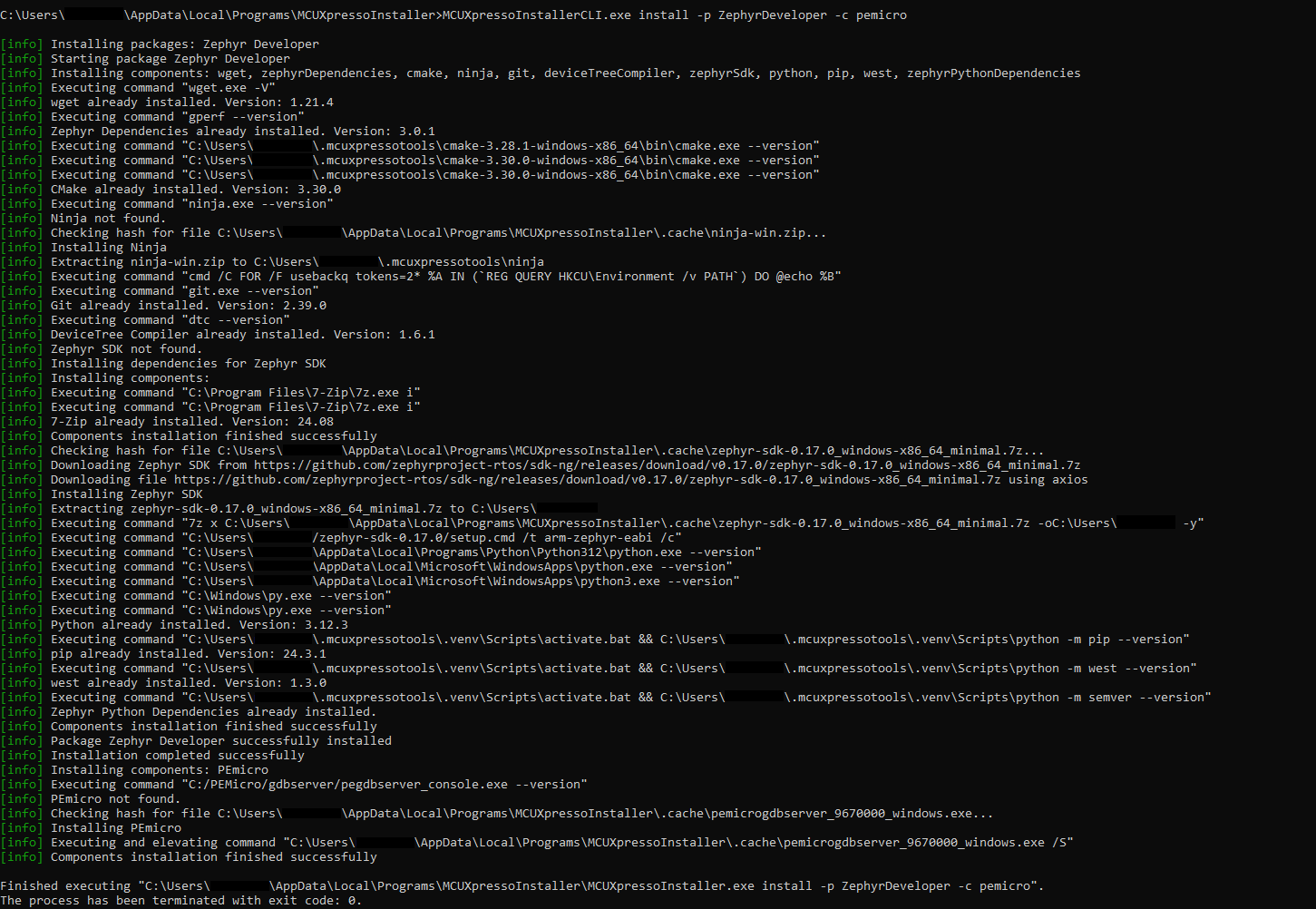

• install | i - Used to install packages and components from MCUXpresso Installer.

Options:

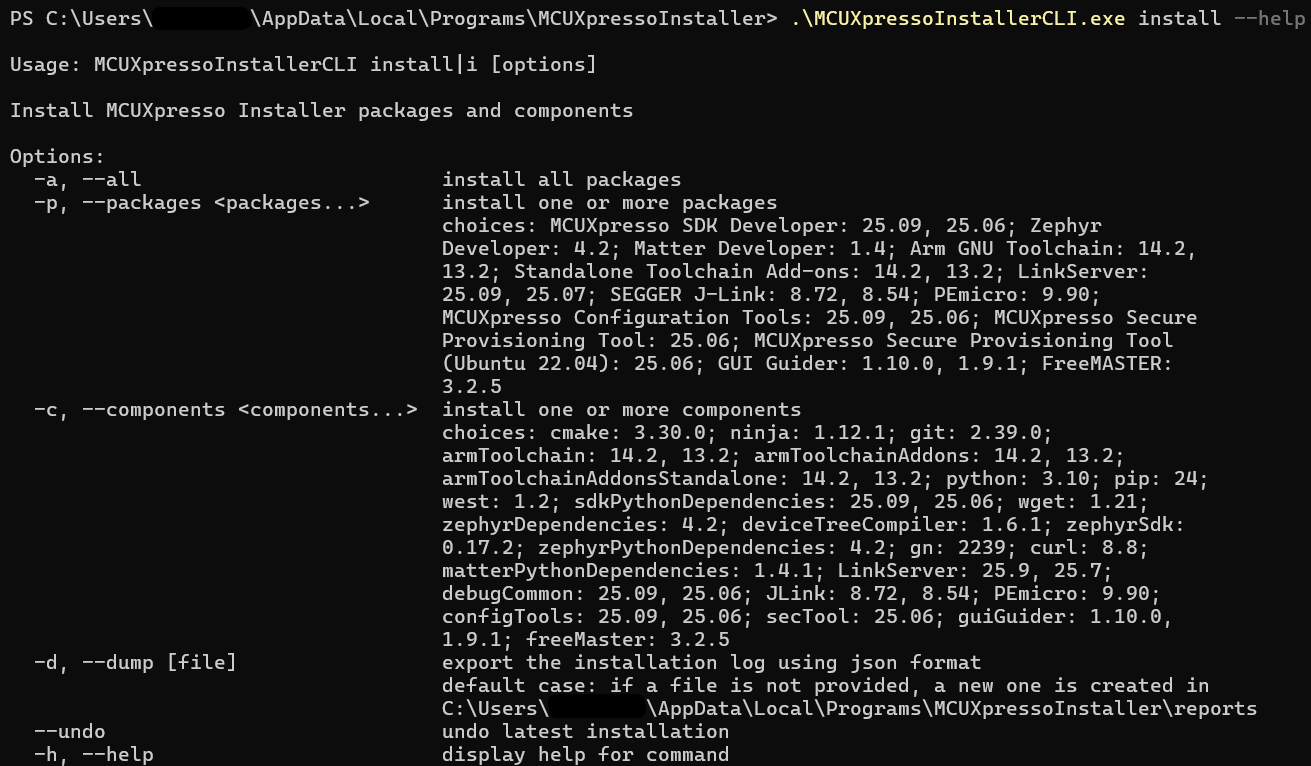

• -h, --help - Display help for install command. Provides details about options and the choices for arguments.

• -a, --all - install all packages available.

• -p, --packages <packages...> - install one or more packages.

• -c, --components <components...> - install one or more components.

• -d, --dump [file] - export the installation log as JSON format. The user can provide the name of a new or existing JSON file. If no file is provided, a reports directory is created in a default location (the MCUXpresso Installer installation path) and a new file is created there. This file can be used in automation systems to identify components installation status. In the file, there are two details provided.

  • envUpdate - marked as true when the MCUXpresso Installer added the component to the PATH of the user.

  • exitCode - represents the installation status, 0 for success and any integer other than zero to indicate failure.

• --undo - undo the latest components installation.

List command

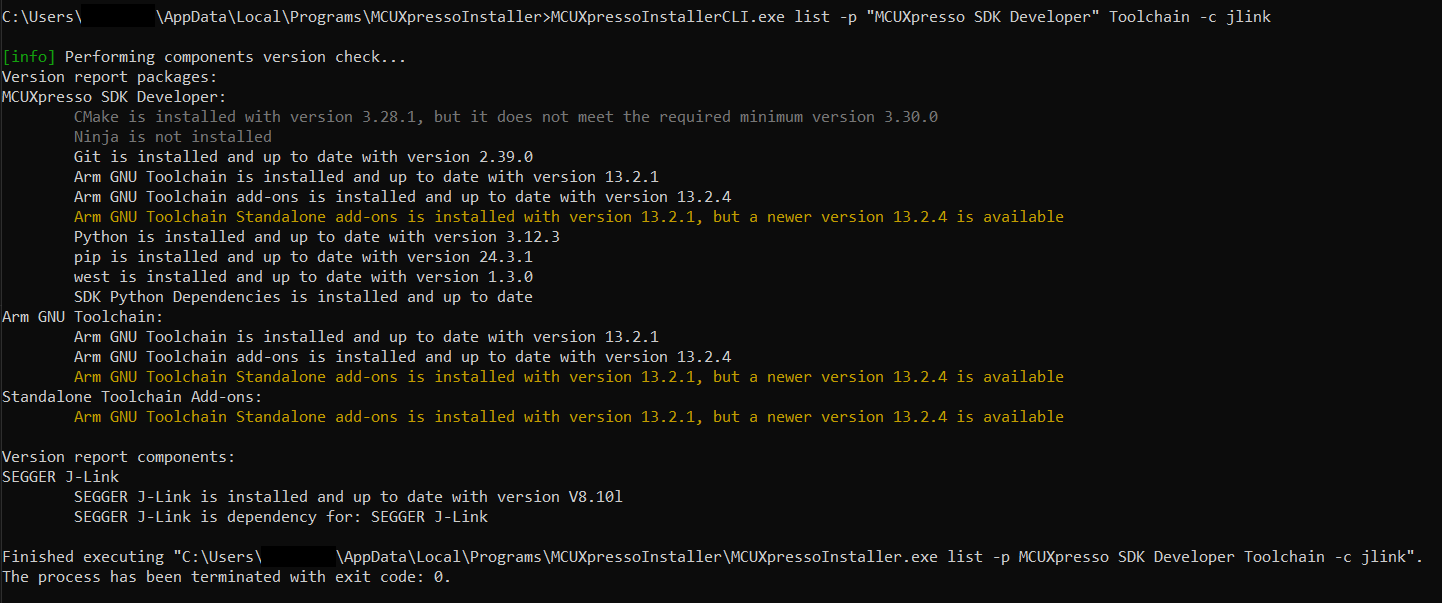

• list | l - Used to give details about packages and components.

Options:

• -h, --help - display help for list command. Provides details about options and the choices for arguments.

• -a, --all - list all packages and the status of components.

• -p, --packages <packages...> - this option has the possibility to see updates only for some packages.

• -c, --components <components...> - this option has the possibility to see updates only for some components.

• -d, --data - list the data from yaml files, which contains the relation between packages and components.

• -e, --export [path] - export the version report as JSON format. The user can provide the name of a new or existing JSON file. If no file is provided, a reports directory is created in a default location (the MCUXpresso Installer installation path) and a new file is created there. This file can be used in automation systems to identify packages and components status. In the file, there are multiple details provided:

  • name: the name of the components

  • level:

    • “info” (no action needed)

    • “warn” (update available)

    • “error” (component not installed or it does not meet the required minimum version)

  • installedVersion: the highest version found

  • versionToBeInstalled: the version that can be installed using MCUXpresso Installer

{
    "MCUXpresso SDK Developer": [
      {
        "name": "CMake",
        "level": "error",
        "installedVersion": "3.28.1",
        "versionToBeInstalled": "3.30.0"
      },
      {
        "name": "Ninja",
        "level": "error",
        "installedVersion": "",
        "versionToBeInstalled": "1.12.1"
      },
      {
        "name": "Git",
        "level": "info",
        "installedVersion": "2.39.0",
        "versionToBeInstalled": "2.39.0"
      },
      {
        "name": "Arm GNU Toolchain Standalone add-ons",
        "level": "warn",
        "installedVersion": "13.2.1",
        "versionToBeInstalled": "13.2.4"
      },
      ...
    ]
}

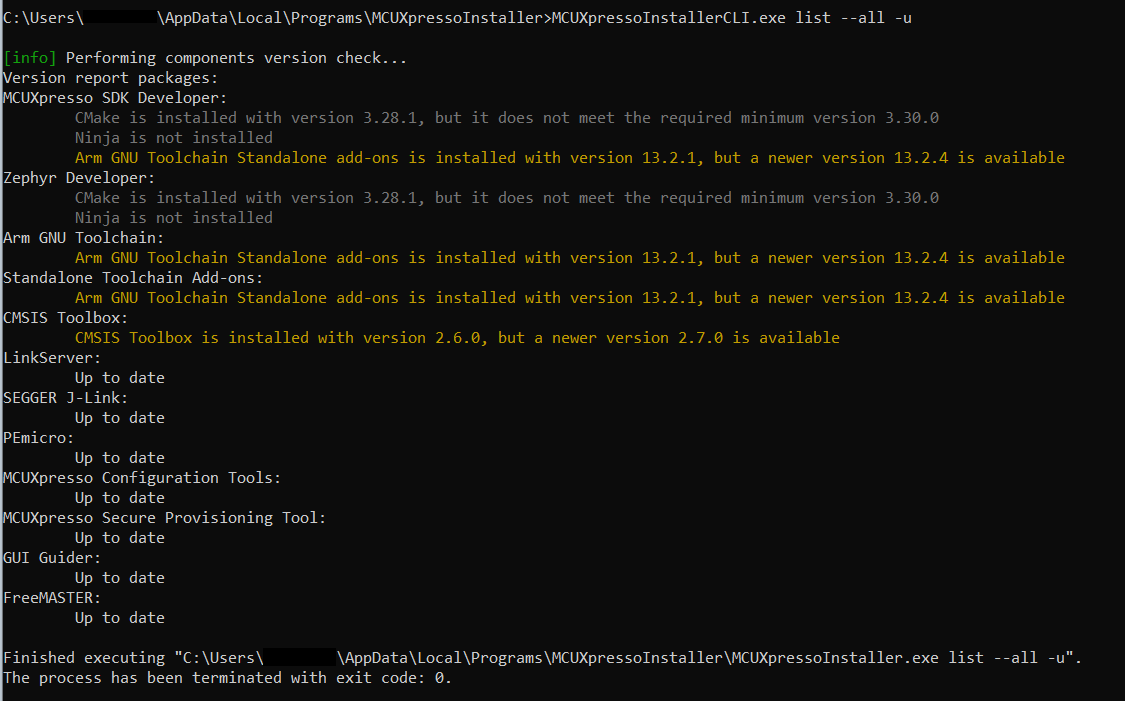

• -u, --updates - this option can be added to the command to show only the components that need updates.

Note: The list command uses multiple colors to highlight the status of components:

• default terminal color - the component is up to date

• yellow - an update is available

• gray

  • the component is not installed

  • the component is installed, but it does not meet the required minimum version

Note: Options that use package names as arguments support multiple package name formats.

• Full name “Arm GNU Toolchain” - Use double quotes when the package name contains spaces.

• Replace spaces with special characters or remove them to avoid using quotes - ArmGNUToolchain, Arm-GNU-Toolchain.

• The names of the packages are case insensitive: arm-gnu-toolchain.

• A package name can match multiple packages: “toolchain” can be used for “Arm GNU Toolchain” and “Standalone Toolchain Add-ons” at the same time.
