Hardware Rework Guide for MCXN547-EVK and Murata M.2 Module

This section is a brief hardware rework guidance of the EdgeFast Bluetooth PAL on the NXP MCXN547-EVK board and the Murata 1XK or 1ZM solution - direct M.2 connection to Embedded Artists’ EAR00385 (1XK) or EAR00364 (1ZM) M.2 modules. The hardware rework consists of two parts:

• M.2 UART interface

• M.2 SDIO interface

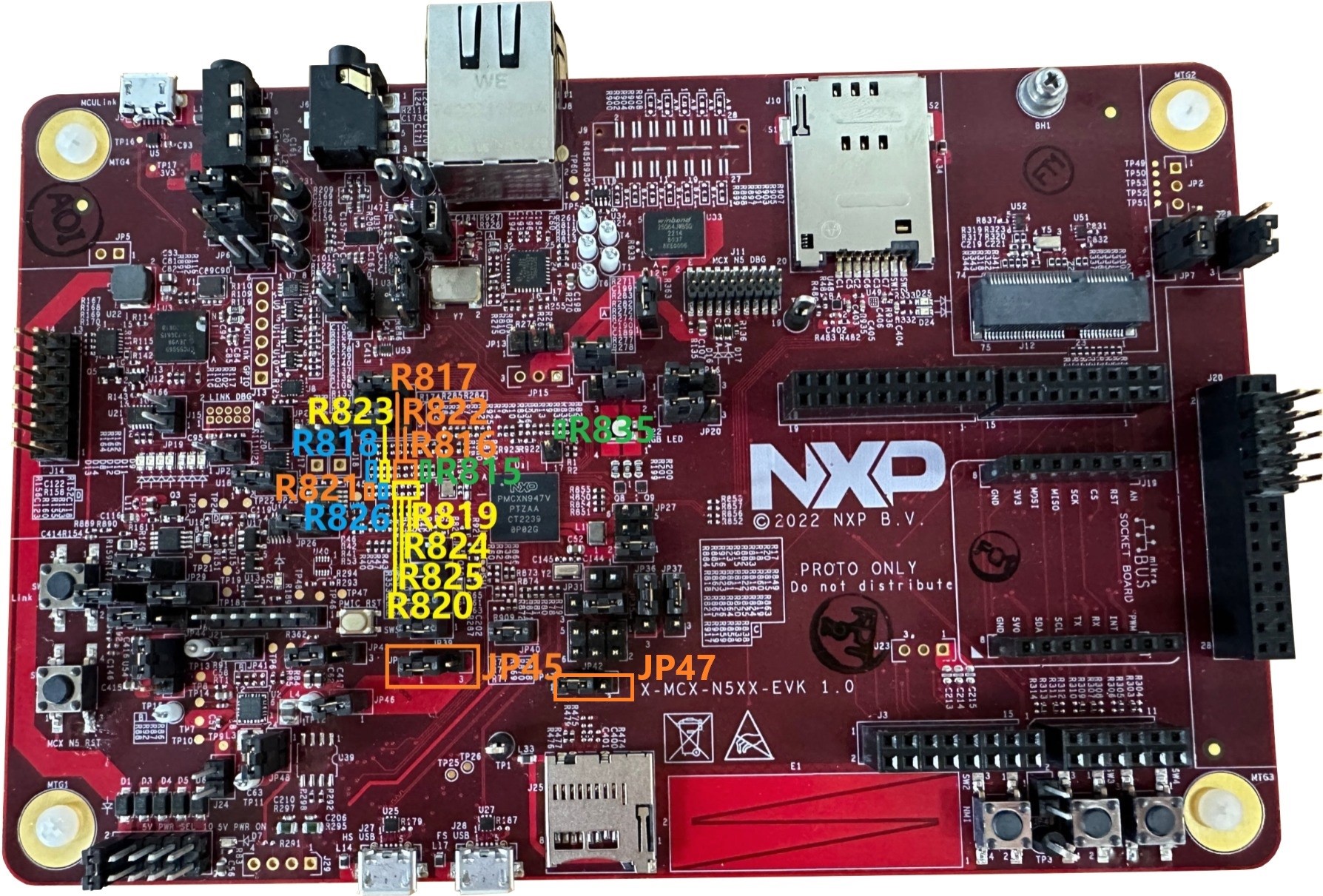

Hardware rework

• M.2 UART interface rework

  • Mount R835

  • Connect JP45 2-3 to supply 1.8V for GPIO4

• M.2 SDIO interface rework

  • Remove R818, connect R823

  • Remove R819, connect R824

  • Remove R817, connect R822

  • Remove R815, connect R816

  • Remove R820, connect R825

  • Remove R821, connect R826
