Hardware configurations#
Hardware requirements#
The NXP Bluetooth LE demo applications run on a selection of the following platforms:
KW45B41Z-EVK
KW45B41Z-LOC
FRDM-MCXW71
MCX-W71-EVK
KW47-EVK
KW47-LOC
FRDM-MCXW72
MCX-W72-EVK
MCXW72-LOC
FRDM-MCXW23
MCXW23-EVK
Parent topic:Hardware configurations
Toolchain requirements#
The Bluetooth Low Energy Stack demo applications were compiled and tested with IAR Embedded Workbench for Arm and MCUXpresso. Users must use one of these tools.
Parent topic:Hardware configurations
KW45B41Z-EVK platform#
The figure below displays the top view of the KW45B41Z-EVK board.
Parent topic:Hardware configurations
KW45B41Z-LOC platform#
The figure below displays the top view of the KW45B41Z-LOC board.
Parent topic:Hardware configurations
FRDM-MCXW71 platform#
The figure below displays the top view of the FRDM-MCXW71 board.
Parent topic:Hardware configurations
MCX-W71-EVK platform#
The figure below displays the top view of the MCX-W71-EVK board.
Parent topic:Hardware configurations
KW47-EVK platform#
The figure below displays the top view of the KW47-EVK board.
Parent topic:Hardware configurations
KW47-LOC platform#
The figure below displays the top view of the KW47-LOC board.
Parent topic:Hardware configurations
FRDM-MCXW72 platform#
The figure below displays the top view of the FRDM-MCXW72 board.
Parent topic:Hardware configurations
MCX-W72-EVK platform#
The figure below displays the top view of the MCX-W72-EVK board.
Parent topic:Hardware configurations
MCXW72-LOC platform#
The figure below displays the top view of the MCXW72-LOC board.
Parent topic:Hardware configurations
FRDM-MCXW23 platform#

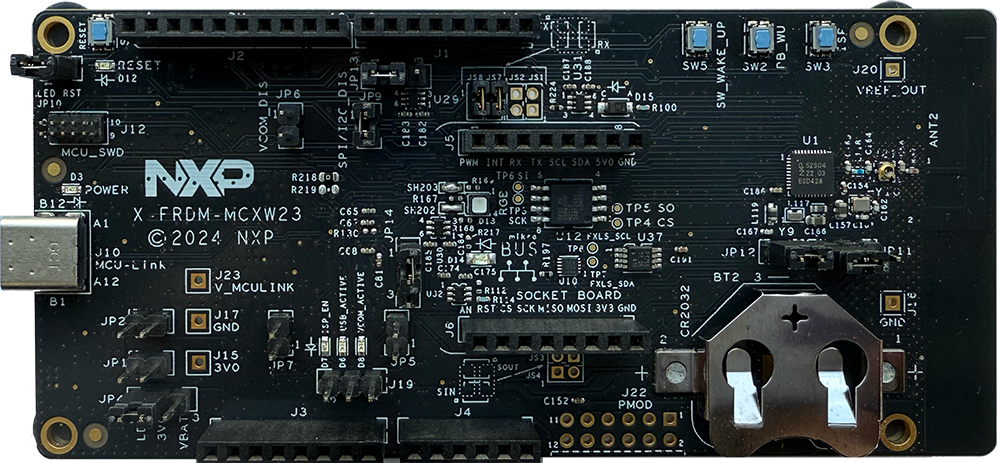

The figure below displays the top view of the FRDM-MCXW23 board.
Parent topic:Hardware configurations
MCXW23-EVK platform#
The figure below displays the top view of the MCXW23-EVK board.
